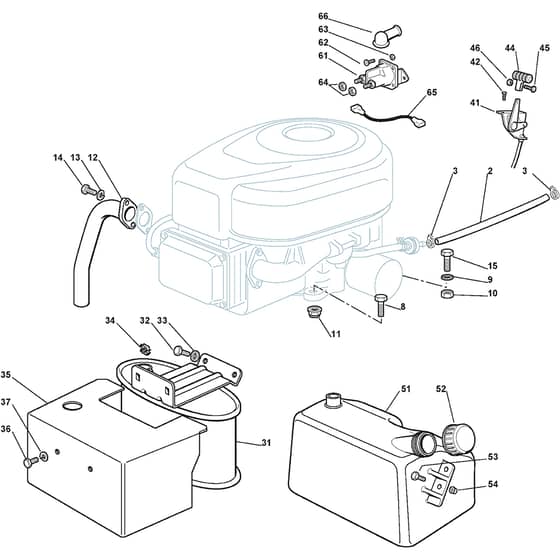

XTY 190 HD - 2017-2022 - 2T0950253/C17 - Castel Garden Ride On Mower Engine Diagram

Name: XTY 190 HD - 2017-2022 - 2T0950253/C17 - Castel Garden Ride On Mower Engine Diagram
SKU: xty_190_hd_2t0950253_c17_engine-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XTY 190 HD - 2017-2022 - 2T0950253/C17 - Castel Garden Ride On Mower Engine Diagram

Description

Castel Garden XTY 190 HD Parts Diagram

Product Name - XTY 190 HD

Model Year - 2017-2022

Model Type - TY 102 Hydro

Art.N - 2T0950253/C17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Pipe L300	£8.02 £6.68
3	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
8	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
11	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
12	MO118738206/0 Available to backorder	Exhaust Pipe	£81.66 £68.05
14	MO112735530/0 Available to backorder	Screw	£1.82 £1.52
15	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
31	MO182750010/0 Available to backorder	Muffler To 31-3-2018	£123.89 £103.24
31	MO182750015/0 Available to backorder	Muffler From 01-4-2018	£115.43 £96.19
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
34	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
35	MO382598009/2 Available to backorder	Muffler Protection	£42.23 £35.19
36	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
37	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
41	MO182000200/1 Available to backorder	Throttle Cable	£24.49 £20.41
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO325592000/1 Available to backorder	Knob From 01-9-2013	£2.40 £2.00
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
65	MO125065017/0 Available to backorder	Cable	£9.43 £7.86
66	MO118564861/2 Available to backorder	Rubber Terminal Cover [Red]	£6.76 £5.63
