XTR 48 HS - 2019 - 296506038/C19 - Castel Garden Rotary Mower Blade Diagram

Description

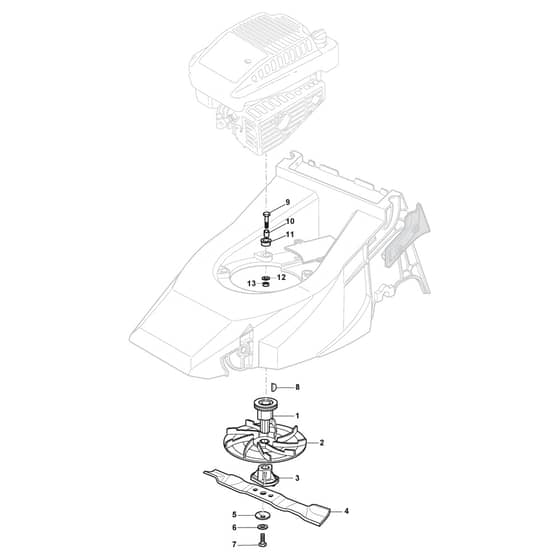

Castel Garden XTR 48 HS Parts Diagram

Product Name - XTR 48 HS

Model Year - 2019

Model Type - T 484 TR

Art.N - 296506038/C19

Engine Model -

	Part No.	Details
1	MO122465606/1 Available to backorder	Hub Fan. Crankshaft Ø 25	£14.42 £12.02
2	MO122245080/0 Available to backorder	Fan	£6.32 £5.27
3	MO122465604/0 Available to backorder	Hub	£11.68 £9.73
4	MO181004346/3 In stock	Left Mulching. Blade Mulching	£12.72 £10.60
4	MO181004397/0 Available to backorder	Blade Winged Winged	£22.88 £19.07
5	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
6	MO112523080/0 In stock	Washer	£1.55 £1.29
7	MO112736820/0 In stock	Screw	£2.95 £2.46
8	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
9	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
10	MO122167840/0 Available to backorder	Spacer	£1.55 £1.29
11	MO122040265/0 Available to backorder	Bushing	£1.39 £1.16
12	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
13	MO112155000/0 In stock	Nut	£1.55 £1.29
