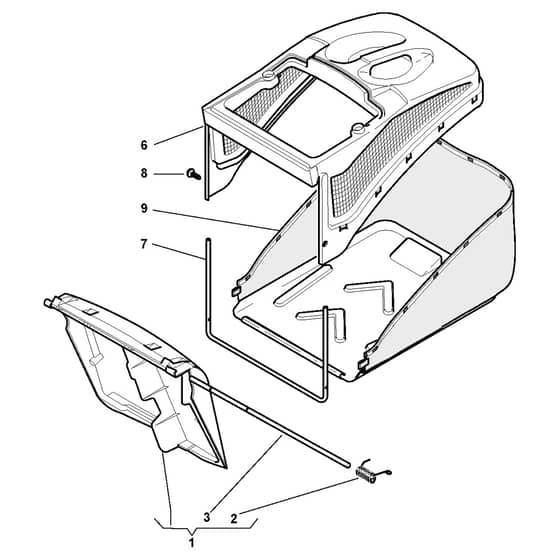

XTR 48 HS - 2012-2013 - 296506138/09 - Castel Garden Rotary Mower Grass Catcher Diagram

Part No. xtr_48_hs_296506138_09_grass_catcher-group
XTR 48 HS - 2012-2013 - 296506138/09 - Castel Garden Rotary Mower Grass Catcher Diagram
XTR 48 HS - 2012-2013 - 296506138/09 - Castel Garden Rotary Mower Grass Catcher Diagram

Description

Castel Garden XTR 48 HS Parts Diagram

Product Name - XTR 48 HS

Model Year - 2012-2013

Model Type - T 484 TR

Art.N - 296506138/09

Engine Model -

Ref. Img. Part No. Details
  2 Spring
Spring
MO122451000/0
Available to backorder
Spring
£4.78 £3.98

  3 Fulcrum Pin
Fulcrum Pin
MO122517907/0
Available to backorder
Fulcrum Pin
£2.53 £2.11

  6 Box. Upper Side
Box. Upper Side
MO122486094/0
Available to backorder
Box. Upper Side
£29.57 £24.64

  7 Lower Stiffening
Lower Stiffening
MO122608524/0
Available to backorder
Lower Stiffening
£21.86 £18.22

  8 Screw
Screw
MO112728445/0
Available to backorder
Screw
£1.55 £1.29

  9 Box. Fabric
Box. Fabric
MO181002196/0
Available to backorder
Box. Fabric
£50.69 £42.24


Description

Castel Garden XTR 48 HS Parts Diagram

Product Name - XTR 48 HS

Model Year - 2012-2013

Model Type - T 484 TR

Art.N - 296506138/09

Engine Model -
