XTR 48 B - 2014 - 296486023/09 - Castel Garden Rotary Mower Blade Diagram

Name: XTR 48 B - 2014 - 296486023/09 - Castel Garden Rotary Mower Blade Diagram
SKU: xtr_48_b_296486023_09_blade-group
Price: 1.16 GBP
Availability: InStock

Part No. xtr_48_b_296486023_09_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XTR 48 B - 2014 - 296486023/09 - Castel Garden Rotary Mower Blade Diagram

Description

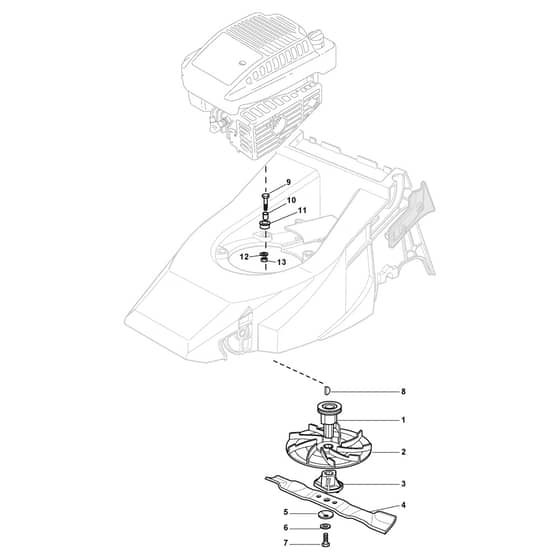

Castel Garden XTR 48 B Parts Diagram

Product Name - XTR 48 B

Model Year - 2014

Model Type - T 484

Art.N - 296486023/09

Engine Model -

	Part No.	Details
1	MO122465605/0 Available to backorder	Hub	£25.20 £21.00
2	MO122245080/0 Available to backorder	Fan	£6.32 £5.27
3	MO122465604/0 Available to backorder	Hub	£11.68 £9.73
4	MO181004346/3 In stock	Left Mulching. Blade	£12.72 £10.60
4	MO181004397/0 Available to backorder	Blade Winged	£22.88 £19.07
5	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
6	MO112523080/0 In stock	Washer	£1.55 £1.29
7	MO112736820/0 In stock	Screw	£2.95 £2.46
8	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
10	MO122167840/0 Available to backorder	Spacer	£1.55 £1.29
11	MO122040265/0 Available to backorder	Bushing	£1.39 £1.16
12	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
13	MO112155000/0 In stock	Nut	£1.55 £1.29
