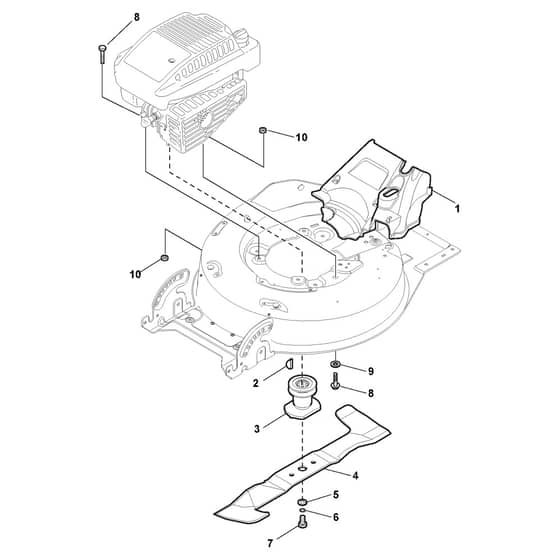

XSPW 52 MHS - 2012-2013 - 290506038/10 - Castel Garden Rotary Mower Blade Diagram

Name: XSPW 52 MHS - 2012-2013 - 290506038/10 - Castel Garden Rotary Mower Blade Diagram
SKU: xspw_52_mhs_290506038_10_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. xspw_52_mhs_290506038_10_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XSPW 52 MHS - 2012-2013 - 290506038/10 - Castel Garden Rotary Mower Blade Diagram

Description

Castel Garden XSPW 52 MHS Parts Diagram

Product Name - XSPW 52 MHS

Model Year - 2012-2013

Model Type - DML 504 W TR

Art.N - 290506038/10

Engine Model -

	Part No.	Details
2	MO112139100/0 In stock	Key	£1.55 £1.29
2	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
3	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25 From 01-9-2010	£9.23 £7.69
4	MO181004450/0 Available to backorder	Mulching Blade	£28.27 £23.56
5	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
6	MO112523080/0 In stock	Washer	£1.55 £1.29
7	MO112735698/0 In stock	Screw	£1.84 £1.53
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
9	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
