XSP 55 HSC - 2012-2013 - 290558038/10 - Castel Garden Rotary Mower Transmission Diagram

Name: XSP 55 HSC - 2012-2013 - 290558038/10 - Castel Garden Rotary Mower Transmission Diagram
SKU: xsp_55_hsc_290558038_10_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. xsp_55_hsc_290558038_10_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XSP 55 HSC - 2012-2013 - 290558038/10 - Castel Garden Rotary Mower Transmission Diagram

Description

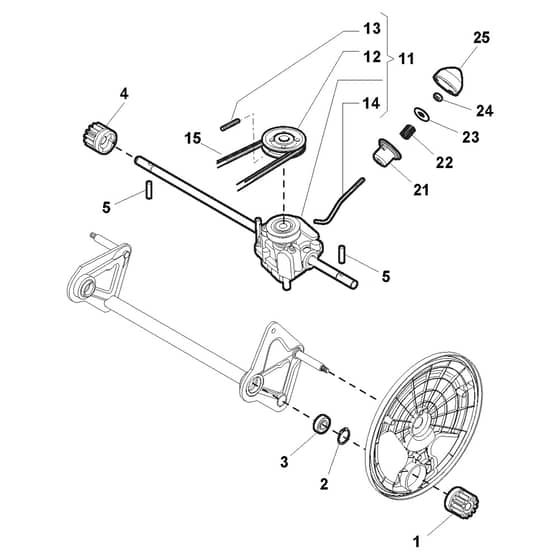

Castel Garden XSP 55 HSC Parts Diagram

Product Name - XSP 55 HSC

Model Year - 2012-2013

Model Type - DML 554 W TR

Art.N - 290558038/10

Engine Model -

	Part No.	Details
1	MO122570132/0 Available to backorder	Left Pinion	£11.70 £9.75
2	MO112608600/0 In stock	Seeger	£1.55 £1.29
3	MO119216035/0 In stock	Bearing	£3.52 £2.93
4	MO122570131/0 Available to backorder	Right Pinion	£11.70 £9.75
5	MO122753000/0 In stock	Pin	£1.55 £1.29
11	MO181003106/1 Available to backorder	Gear Box From 01-9-2011	£136.54 £113.78
12	MO122601908/1 Available to backorder	Pulley From 01-9-2009	£11.54 £9.62
12	MO122601909/0 In stock	Pulley To 31-8-2009	£5.65 £4.71
13	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
14	MO122033288/0 Available to backorder	Adjustment Rod To 31-8-2009	£17.33 £14.44
14	MO122033290/0 Available to backorder	Adjustment Rod From 01-9-2009	£7.70 £6.42
15	MO135064392/0 Available to backorder	Belt	£12.91 £10.76
21	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
22	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
23	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO122110230/0 In stock	Hub Cover To 31-8-2009	£1.55 £1.29
