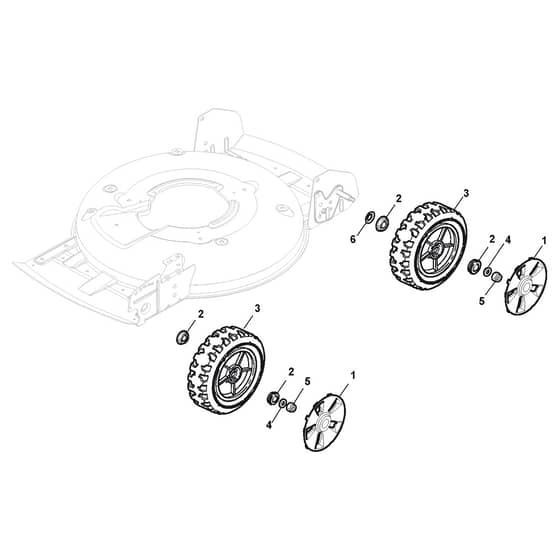

XSM 50 BS - 2012-2013 - 291502023/C11 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Name: XSM 50 BS - 2012-2013 - 291502023/C11 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram
SKU: xsm_50_bs_291502023_c11_wheels_and_hub_caps-group
Price: 1.16 GBP
Availability: InStock

Part No. xsm_50_bs_291502023_c11_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XSM 50 BS - 2012-2013 - 291502023/C11 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

Castel Garden XSM 50 BS Parts Diagram

Product Name - XSM 50 BS

Model Year - 2012-2013

Model Type - MCS 504 TR

Art.N - 291502023/C11

Engine Model -

	Part No.	Details
1	MO322110643/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
2	MO119216035/0 In stock	Bearing From 01-9-2012	£3.52 £2.93
2	MO122122206/0 In stock	Bearing To 31-8-2012	£1.84 £1.53
3	MO381007490/0 Available to backorder	Wheel Ø 210 From 01-9-2012	£25.00 £20.83
3	MO381007390/2 Available to backorder	Wheel Ø 210 To 31-8-2012	£18.43 £15.36
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112530150/0 In stock	Spring Washer To 31-8-2012	£1.39 £1.16
