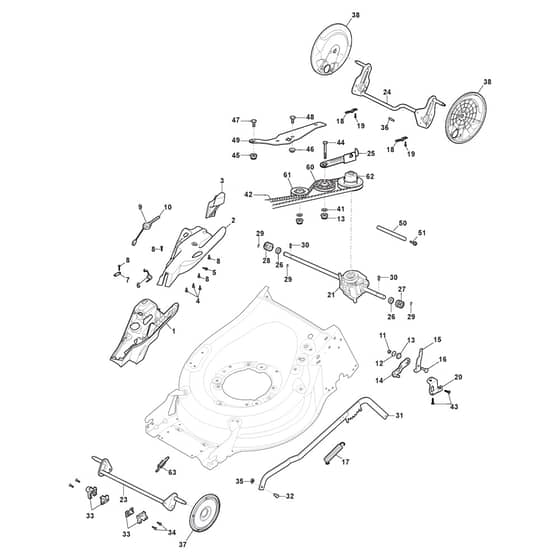

Castel Garden XS 55 HVW4 Parts Diagram

Product Name - XS 55 HV

Model Year - 2016

Model Type - MP1 554 WSVQ

Art.N - 294557838/C16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322055264/0 Available to backorder	Lower Cover	£8.17 £6.81
2	MO322055265/0 Available to backorder	Upper Cover	£8.29 £6.91
3	MO322602026/0 Available to backorder	Button	£3.94 £3.28
4	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
5	MO125943004/0 Available to backorder	Screw	£1.82 £1.52
6	MO122450477/0 Available to backorder	Spring	£1.82 £1.52
7	MO322981471/1 Available to backorder	Plate	£1.55 £1.29
9	MO322602027/0 Available to backorder	Lens	£1.82 £1.52
10	MO322602028/0 Available to backorder	Visualizer	£1.55 £1.29
11	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
14	MO381003475/2 Available to backorder	Lever. Height Adjustment From 01-9-2017	£8.65 £7.21
15	MO322778475/0 Available to backorder	Bracket	£2.81 £2.34
16	MO112815270/0 Available to backorder	Screw	£1.55 £1.29
17	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
18	MO322545152/0 In stock	Plate	£1.55 £1.29
20	MO322778477/1 Available to backorder	Bracket From 01-9-2018	£4.22 £3.52
21	MO181003116/0 Available to backorder	Gear Box	£183.01 £152.51
23	MO381302883/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH076281	£32.38 £26.98
23	MO381302883/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH076280	£36.92 £30.77
24	MO381302889/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH082521	£53.34 £44.45
24	MO381302889/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH082522	£46.46 £38.72
25	MO322806647/0 Available to backorder	Bracket	£5.06 £4.22
26	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
27	MO122570134/0 In stock	Left Pinion	£7.52 £6.27
28	MO122570133/0 In stock	Right Pinion	£7.52 £6.27
29	MO112608600/0 In stock	Seeger	£1.55 £1.29
30	MO122753000/0 In stock	Pin	£1.55 £1.29
31	MO381002046/1 Available to backorder	Wheels Control Rod From S.N 20BA2WBH082522	£54.90 £45.75
32	MO122519823/0 In stock	Pin	£2.26 £1.88
33	MO322785305/1 In stock	Support	£2.68 £2.23
34	MO112728697/0 In stock	Screw	£1.55 £1.29
35	MO112436050/0 In stock	Plate	£1.82 £1.52
37	MO322600145/0 Available to backorder	Protection. Wheel	£1.69 £1.41
38	MO322600208/0 Available to backorder	Protection. Wheel	£4.37 £3.64
41	MO112523050/0 In stock	Washer	£1.55 £1.29
42	MO135064379/0 In stock	Belt	£15.36 £12.80
43	MO112728704/1 Available to backorder	Screw	£1.55 £1.29
44	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
45	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
46	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
47	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
48	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
49	MO322806649/0 Available to backorder	Bracket	£6.62 £5.52
50	MO322608567/1 Available to backorder	Stiffening From S.N 19AA2WBH005322	£7.74 £6.45
50	MO322608567/0 Available to backorder	Stiffening To S.N 19AA2WBH005321	£8.89 £7.41
51	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
60	MO122601914/0 In stock	Pulley	£21.54 £17.95
61	MO122601915/0 In stock	Pulley	£21.40 £17.83
62	MO122601932/0 In stock	Pulley	£57.43 £47.86
63	MO122450481/0 Available to backorder	Spring Front Axle	£3.10 £2.58
