XS 55 HVW4 - 2016 - 294557838/C16 - Castel Garden Rotary Mower Cam Pulley Diagram

Name: XS 55 HVW4 - 2016 - 294557838/C16 - Castel Garden Rotary Mower Cam Pulley Diagram
SKU: xs_55_hvw4_294557838_c16_cam_pulley-group
Price: 2.24 GBP
Availability: InStock

Part No. xs_55_hvw4_294557838_c16_cam_pulley-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

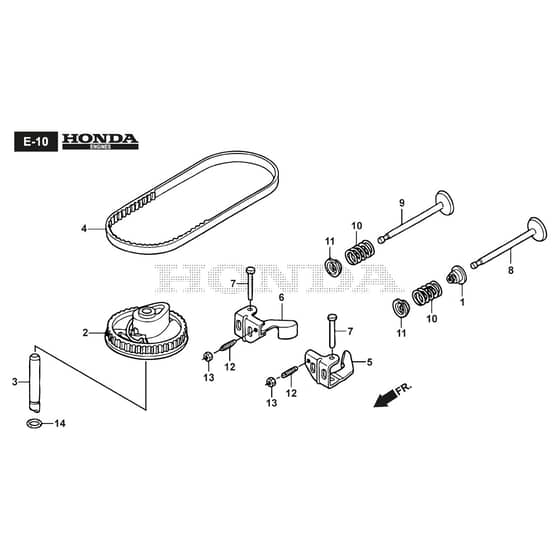

XS 55 HVW4 - 2016 - 294557838/C16 - Castel Garden Rotary Mower Cam Pulley Diagram

Description

Castel Garden XS 55 HVW4 Parts Diagram

Product Name - XS 55 HV

Model Year - 2016

Model Type - MP1 554 WSVQ

Art.N - 294557838/C16

Engine Model -

	Part No.	Details
1	HP12209-Z8B-003 Available to backorder	Seal. Valve Stem	£8.57 £7.14
2	HP14320-Z8D-000 Available to backorder	Pulley Comp. Camshaft	£21.77 £18.14
3	HP14324-Z8B-000 Available to backorder	Shaft. Cam Pulley	£12.12 £10.10
4	HP14400-Z8B-003 Available to backorder	Belt. Timing (84Hu6 G-200)	£39.89 £33.24
5	HP14431-Z0J-000 Available to backorder	Arm. In. Valve Rocker	£8.16 £6.80
6	HP14441-Z0J-000 Available to backorder	Arm. Ex. Valve Rocker	£8.16 £6.80
7	HP14461-ZL8-000 Available to backorder	Shaft. Rocker Arm	£3.10 £2.58
8	HP14711-ZL8-000 Available to backorder	Valve. In. (Technostar)	£10.58 £8.82
9	HP14721-ZL8-000 Available to backorder	Valve. Ex. (L8E)	£12.25 £10.21
9	HP14721-Z8B-000 Available to backorder	Valve. Ex. (C8E)	£12.25 £10.21
10	HP14751-ZL8-000 Available to backorder	Spring. Valve	£2.69 £2.24
11	HP14771-Z0J-000 Available to backorder	Retainer. Valve Spring	£5.23 £4.36
12	HP90012-333-000 Available to backorder	Screw. Tappet Adjusting	£5.03 £4.19
13	HP90206-001-000 Available to backorder	Nut. Tappet Adjusting	£5.05 £4.21
14	HP91301-ZM0-V31 Available to backorder	O-Ring. 6.8X1.9 (Arai)	£2.71 £2.26
