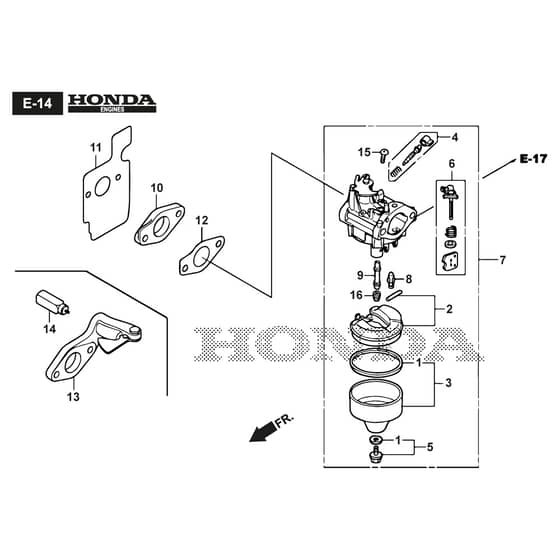

XS 55 HV - 2022-2025 - 294557838/C22 - Castel Garden Rotary Mower Caburettor Diagram

Name: XS 55 HV - 2022-2025 - 294557838/C22 - Castel Garden Rotary Mower Caburettor Diagram
SKU: xs_55_hv_294557838_c22_caburettor-group
Price: 1.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XS 55 HV - 2022-2025 - 294557838/C22 - Castel Garden Rotary Mower Caburettor Diagram

Description

Castel Garden XS 55 HV Parts Diagram

Product Name - XS 55 HV

Model Year - 2022-2025

Model Type - MP1 554 WSVQ

Art.N - 294557838/C22

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-Z9L-811 In stock	Gasket Set	£3.60 £3.00
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.11 £30.09
3	HP16015-Z9L-811 Available to backorder	Chamber Set. Float	£53.81 £44.84
5	HP16028-ZK7-S91 Available to backorder	Screw Set	£14.59 £12.16
8	HP16155-ZM0-013 In stock	Valve. Float	£46.32 £38.60
11	HP16212-Z9L-000 In stock	Packing. Insulator	£9.95 £8.29
12	HP16221-Z9L-000 Available to backorder	Packing. Carburetor	£2.14 £1.78
13	HP16600-Z9L-000 In stock	Control Assy. Choke	£62.92 £52.43
14	HP16620-Z9L-003 In stock	Thermowax Assy.	£39.01 £32.51
15	HP93500-050-060H Available to backorder	Screw. Pan. 5X6	£2.35 £1.96
