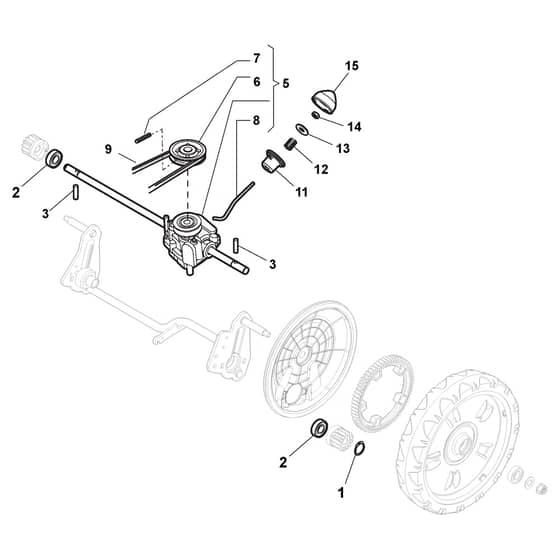

XS 53 HSW - 2014 - 299536038/C14 - Castel Garden Rotary Mower Transmission Diagram

Description

Castel Garden XS 53 HSW Parts Diagram

Product Name - XS 53 HSW

Model Year - 2014

Model Type - NTL 534 W TR

Art.N - 299536038/C14

Engine Model -

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
3	MO122753000/0 In stock	Pin	£1.55 £1.29
5	MO181003076/1 Available to backorder	Gear Box From 01-9-2012	£121.07 £100.89
5	MO181003092/0 In stock	Gear Box To 31-8-2012	£63.96 £53.30
6	MO122601909/0 In stock	Pulley From 01-9-2013	£5.65 £4.71
7	MO112645700/0 Available to backorder	Elastic Pin	£1.63 £1.36
8	MO122033283/0 In stock	Adjustment Rod	£4.64 £3.87
9	MO135063902/1 In stock	Belt From 01-9-2018	£8.53 £7.11
9	MO1111-9124-01 Available to backorder	Drive Belt Stiga Packed into 135063902.1	£12.66 £10.55
11	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
12	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
13	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
