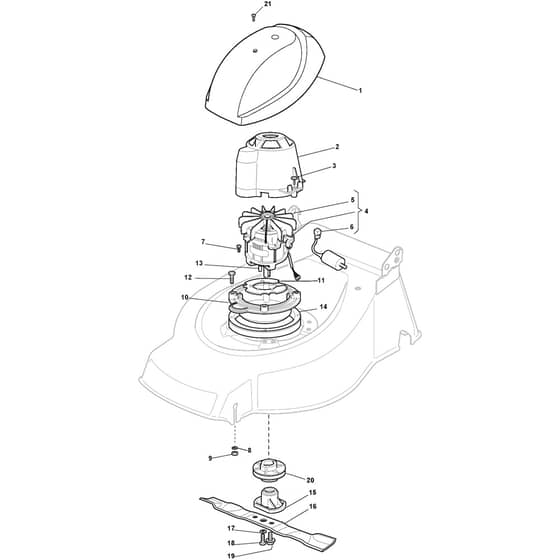

XS 48 ESW - 2014 - 299487073/C11 - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Name: XS 48 ESW - 2014 - 299487073/C11 - Castel Garden Rotary Mower Electric Motor and Blade Diagram
SKU: xs_48_esw_299487073_c11_electric_motor_and_blade-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XS 48 ESW - 2014 - 299487073/C11 - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Description

Castel Garden XS 48 ESW Parts Diagram

Product Name - XS 48 ESW

Model Year - 2014

Model Type - NT 480 W TR

Art.N - 299487073/C11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055058/0 Available to backorder	Cover. Black	£12.67 £10.56
2	MO322785210/1 Available to backorder	Support. Cover	£6.76 £5.63
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
4	MO118563721/0 Available to backorder	Electric Motor 1800W 230V (1800W)	£211.16 £175.97
4	MO118563641/1 Available to backorder	Electric Motor 1800W 230V (1800W)	£232.28 £193.57
5	MO118740054/0 Available to backorder	Fan Motor Atb	£9.14 £7.62
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen	£3.24 £2.70
12	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO322170960/1 Available to backorder	Spacer	£6.20 £5.17
15	MO322463186/3 Available to backorder	Blade Hub	£8.08 £6.73
16	MO181004460/0 In stock	Mulching Blade	£14.15 £11.79
17	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
18	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
19	MO381004352/1 In stock	Screw	£4.08 £3.40
20	MO322601911/2 Available to backorder	Pulley	£6.20 £5.17
21	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
