XR 26 J - 2010-2012 - 280710103/10 - Castel Garden Trimmer Handle Transmission Diagram

Name: XR 26 J - 2010-2012 - 280710103/10 - Castel Garden Trimmer Handle Transmission Diagram
SKU: xr_26_j_280710103_10_handle_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. xr_26_j_280710103_10_handle_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XR 26 J - 2010-2012 - 280710103/10 - Castel Garden Trimmer Handle Transmission Diagram

Description

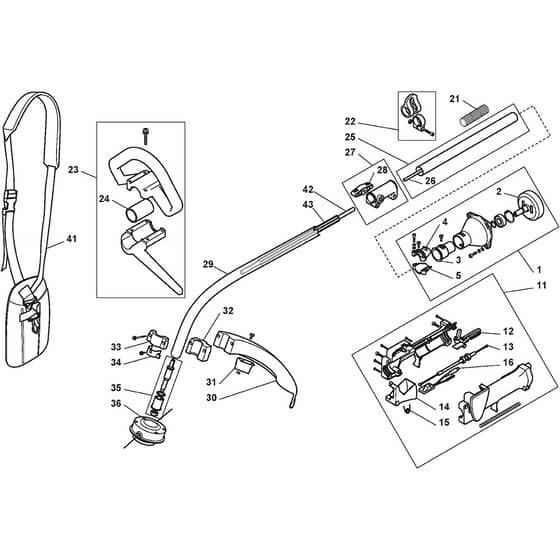

Castel Garden XR 26 J Parts Diagram

Product Name - XR 26 J

Model Year - 2010-2012

Model Type - TR 26 J

Art.N - 280710103/10

Engine Model -

	Part No.	Details
2	MO123050011/0 Available to backorder	Clutch Drum Assy	£15.34 £12.78
4	MO123720005/0 Available to backorder	Support	£4.78 £3.98
13	MO123066026/0 Available to backorder	Throttle Cable	£7.25 £6.04
16	MO183303002/0 Available to backorder	Switch	£4.93 £4.11
22	MO183780002/0 Available to backorder	Harness Support	£3.52 £2.93
23	MO183300025/0 Available to backorder	Front Handle	£14.35 £11.96
25	MO183869072/0 Available to backorder	Assy Transmission Tube	£30.98 £25.82
26	MO123020035/0 Available to backorder	Transmission Shaft	£15.20 £12.67
27	MO183260002/0 Available to backorder	Connecting Head Assy	£19.42 £16.18
28	MO123593510/0 Available to backorder	Knob	£1.55 £1.29
29	MO118800281/0 Available to backorder	Transmission Pipe	£17.46 £14.55
34	MO123650111/0 Available to backorder	Plate	£1.70 £1.42
35	MO183869075/0 Available to backorder	Head Shaft	£17.17 £14.31
41	MO123046005/0 Available to backorder	Harness	£22.51 £18.76
42	MO123020037/0 Available to backorder	Flexible Shaft	£9.42 £7.85
