XP 40 Li - 2014 - 294385063/C13 - Castel Garden Rotary Mower Deck Diagram

Name: XP 40 Li - 2014 - 294385063/C13 - Castel Garden Rotary Mower Deck Diagram
SKU: xp_40_li_294385063_c13_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. xp_40_li_294385063_c13_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XP 40 Li - 2014 - 294385063/C13 - Castel Garden Rotary Mower Deck Diagram

Description

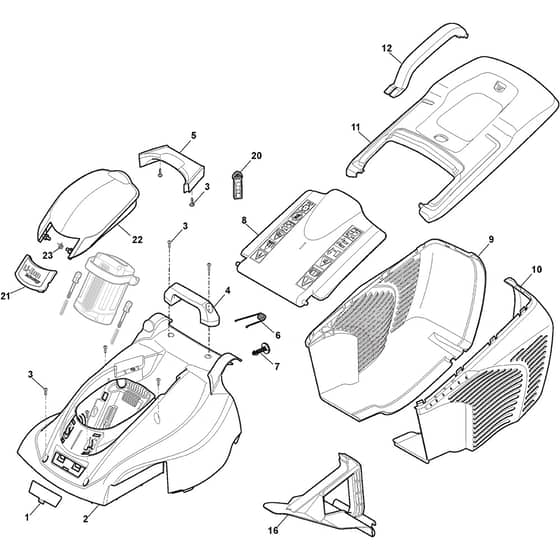

Castel Garden XP 40 Li Parts Diagram

Product Name - XP 40 Li

Model Year - 2014

Model Type - EL 380 Li

Art.N - 294385063/C13

Engine Model -

	Part No.	Details
1	MO322055168/0 Available to backorder	Front Plate To 31-August-2014	£1.70 £1.42
1	MO322055252/0 Available to backorder	Front Plate From 01-9-2014	£1.55 £1.29
2	MO322055166/0 Available to backorder	Red Cover	£49.26 £41.05
3	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
6	MO122450470/0 Available to backorder	Spring	£2.40 £2.00
7	MO322524356/0 Available to backorder	Pin	£1.39 £1.16
8	MO322600291/0 Available to backorder	Stone-Guard	£10.14 £8.45
9	MO322486299/0 Available to backorder	Grass-Box. Right Lower Part	£21.82 £18.18
10	MO322486300/0 Available to backorder	Grass-Box. Left Lower Part	£21.82 £18.18
11	MO322486329/0 Available to backorder	Grass-Box. Upper Part	£15.28 £12.73
11	MO322486309/0 Available to backorder	Grass-Box. Upper Part	£15.28 £12.73
12	MO322393656/0 Available to backorder	Handle	£4.50 £3.75
16	MO322140242/0 Available to backorder	Mulching Plug	£13.38 £11.15
20	MO322076570/1 In stock	Battery Safety Key From 01-9-2013	£5.47 £4.56
21	MO322545226/0 Available to backorder	Plate	£10.98 £9.15
22	MO322055167/0 Available to backorder	Cover	£11.06 £9.22
23	MO122450473/0 Available to backorder	Spring	£5.92 £4.93
