XP 40 Li - 2014 - 294385063/C13 - Castel Garden Rotary Mower Blade Diagram

Name: XP 40 Li - 2014 - 294385063/C13 - Castel Garden Rotary Mower Blade Diagram
SKU: xp_40_li_294385063_c13_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. xp_40_li_294385063_c13_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XP 40 Li - 2014 - 294385063/C13 - Castel Garden Rotary Mower Blade Diagram

Description

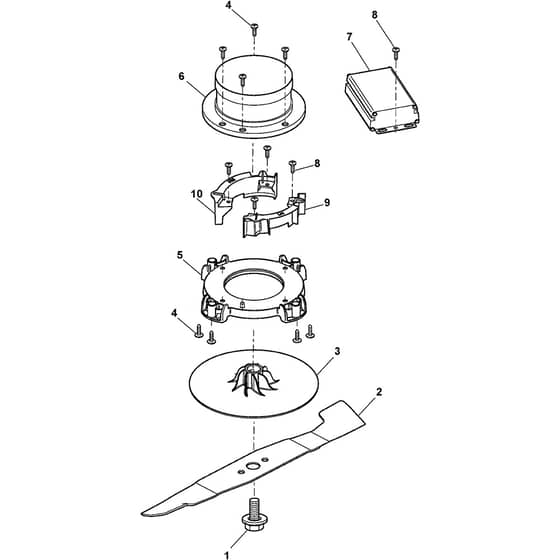

Castel Garden XP 40 Li Parts Diagram

Product Name - XP 40 Li

Model Year - 2014

Model Type - EL 380 Li

Art.N - 294385063/C13

Engine Model -

	Part No.	Details
1	MO381004352/1 In stock	Screw	£4.08 £3.40
2	MO181004162/0 In stock	Blade From 01-9-2016	£15.97 £13.31
3	MO322465644/1 Available to backorder	Blade Hub From 01-9-2012	£5.81 £4.84
4	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
6	MO118563513/0 Available to backorder	Engine Battey 36V To 31-8-2015	£212.21 £176.84
7	MO118206001/1 Available to backorder	Controller 36V From 01-9-2013 To 31-8-2015	£146.42 £122.02
8	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
9	MO322393686/0 Available to backorder	Left Battery Flange Wall	£1.84 £1.53
10	MO322393685/0 Available to backorder	Right Battery Flange Wall	£1.84 £1.53
