XP 40 Li - 2012-2013 - 294385063/C12 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

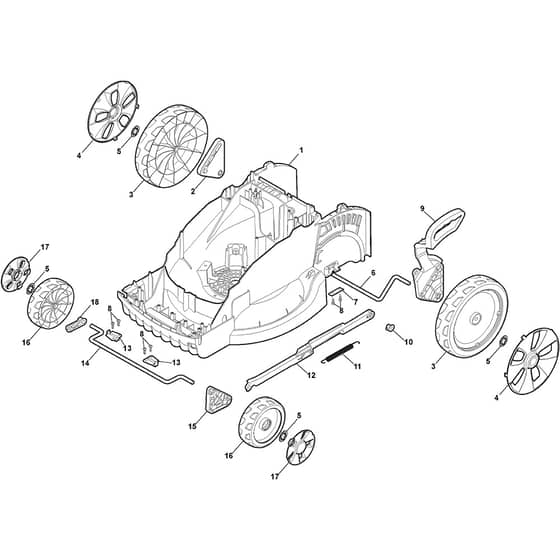

Castel Garden XP 40 Li Parts Diagram

Product Name - XP 40 Li

Model Year - 2012-2013

Model Type - EL 380 Li

Art.N - 294385063/C12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322066783/0 Available to backorder	Deck Stiga Grey From 01-9-2014	£90.10 £75.08
2	MO322785387/0 Available to backorder	Support. Wheel To 31-8-2014	£2.12 £1.77
2	MO322785450/1 Available to backorder	Support. Wheel From 01-1-2022	£1.97 £1.64
3	MO322686105/0 Available to backorder	Wheel	£9.08 £7.57
4	MO322110637/0 Available to backorder	Hub Cap Grey	£3.24 £2.70
5	MO112604903/0 In stock	Washer	£1.55 £1.29
6	MO122033425/0 Available to backorder	Rear Wheel Axle	£9.58 £7.98
7	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
8	MO112728714/0 Available to backorder	Screw	£1.55 £1.29
9	MO322785443/1 Available to backorder	Lever. Height Adjustment From 01-9-2017	£16.34 £13.62
9	MO322785388/1 Available to backorder	Lever. Height Adjustment From 01-9-2012 To 31-8-2014	£18.02 £15.02
10	MO322524354/0 In stock	Pin	£1.55 £1.29
11	MO122446195/0 Available to backorder	Spring	£2.81 £2.34
12	MO322869690/0 In stock	Rod. Height Adjustment From 01-9-2014	£8.02 £6.68
13	MO322785415/0 Available to backorder	Plate	£1.97 £1.64
14	MO122033424/0 Available to backorder	Rear Wheel Axle	£9.28 £7.73
15	MO322785438/0 In stock	Support. Wheel From 01-9-2014	£2.95 £2.46
16	MO322686104/0 Available to backorder	Wheel	£5.48 £4.57
17	MO322110685/0 Available to backorder	Hub Cap Grey	£1.55 £1.29
18	MO322785449/0 Available to backorder	Front Wheel Support [Grey]	£1.55 £1.29
