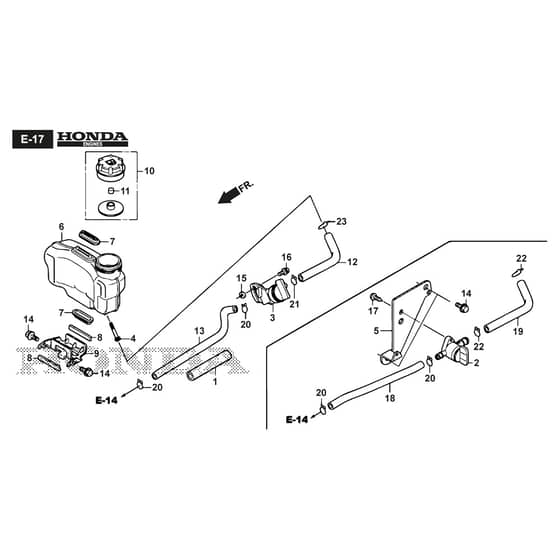

XM 55 HS - 2020-2021 - 294562833/C20 - Castel Garden Rotary Mower Fuel Tank Diagram

Name: XM 55 HS - 2020-2021 - 294562833/C20 - Castel Garden Rotary Mower Fuel Tank Diagram
SKU: xm_55_hs_294562833_c20_fuel_tank-group
Price: 0.99 GBP
Availability: InStock

Part No. xm_55_hs_294562833_c20_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XM 55 HS - 2020-2021 - 294562833/C20 - Castel Garden Rotary Mower Fuel Tank Diagram

Description

Castel Garden XM 55 HS Parts Diagram

Product Name - XM 55 HS

Model Year - 2020-2021

Model Type - MP2 554 SQ

Art.N - 294562833/C20

Engine Model -

	Part No.	Details
2	HP16950-Z0Y-003 Available to backorder	Cock Assy. Fuel	£35.81 £29.84
4	HP16952-Z9R-000 In stock	Strainer. Fuel	£10.16 £8.47
5	HP16961-Z9L-000 Available to backorder	Stay. Fuel Cock	£10.08 £8.40
6	HP17511-Z9L-800 Available to backorder	Tank. Fuel	£41.44 £34.53
7	HP17532-Z9L-000 Available to backorder	Rubber A. Tank Mounting	£7.03 £5.86
8	HP17533-Z9L-000 Available to backorder	Rubber B. Tank Mounting	£3.97 £3.31
9	HP17561-Z9L-000 Available to backorder	Stay. Fuel Tank	£9.31 £7.76
10	HP17620-Z9L-800 In stock	Cap Assy. Fuel Tank	£18.72 £15.60
11	HP17622-888-010 In stock	Sponge. Fuel Cap Breather	£1.63 £1.36
14	HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)	£3.77 £3.14
17	HP93913-252-20 Available to backorder	Screw. Tapping. 5X12 (Po)	£1.39 £1.16
20	HP95002-02080 In stock	Clip. Tube (B8)	£1.19 £0.99
22	HP95002-02120 Available to backorder	Clip. Tube (B12)	£1.49 £1.24
