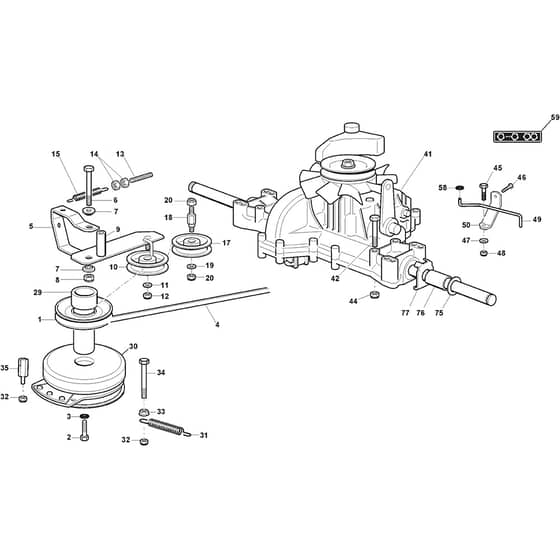

XLT 240 HD - 2017-2022 - 2T1945273/C17 - Castel Garden Ride On Mower TT Transmission Diagram

Description

Castel Garden XLT 240 HD Parts Diagram

Product Name - XLT 240 HD

Model Year - 2017-2022

Model Type - TX 118 Hydro SD

Art.N - 2T1945273/C17

Engine Model - Intek 8240 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182595501/0 Available to backorder	Pulley	£53.50 £44.58
2	MO125943013/0 Available to backorder	Screw	£12.67 £10.56
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
5	MO382318165/2 Available to backorder	Lever	£27.74 £23.12
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 In stock	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
18	MO125510139/0 Available to backorder	Pin	£10.84 £9.03
19	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
30	MO118399069/1 Available to backorder	Electromagnetic Clutch	£353.16 £294.30
31	MO127430592/0 Available to backorder	Brake Spring	£5.76 £4.80
33	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
34	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
35	MO125598055/0 Available to backorder	Clutch Pin Extension	£14.70 £12.25
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
44	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
45	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
46	MO112735150/0 Available to backorder	Screw	£1.69 £1.41
47	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO125033129/0 Available to backorder	Rod	£6.34 £5.28
50	MO325785523/0 Available to backorder	Rear Support	£6.76 £5.63
58	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
59	MO114357423/2 Available to backorder	Label	£1.66 £1.38
75	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
