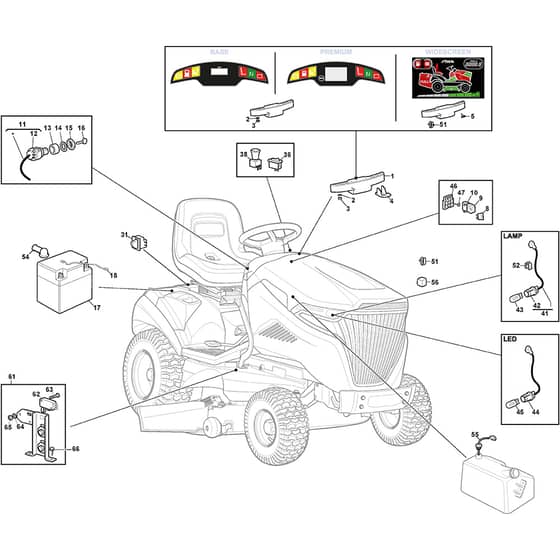

Castel Garden XLT 240 HD Parts Diagram

Product Name - XLT 240 HD

Model Year - 2017-2022

Model Type - TX 118 Hydro SD

Art.N - 2T1945273/C17

Engine Model - Intek 8240 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382722447/1 Available to backorder	Electronic Card	£313.04 £260.87
2	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
3	MO112154330/0 In stock	Nut	£1.55 £1.29
4	MO325031501/0 Available to backorder	Buzzer Sound Amplifier	£6.34 £5.28
5	MO112728714/0 Available to backorder	Screw	£1.55 £1.29
8	MO133340035/0 Available to backorder	Fuse 15 A 15A	£1.55 £1.29
8	MO133340036/0 Available to backorder	Fuse 25 A 25A	£1.69 £1.41
8	MO133340040/0 Available to backorder	Fuse 10 A 10A	£2.26 £1.88
9	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
10	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
11	MO182040215/0 Available to backorder	Wiring Harness Rear Tank	£339.50 £282.92
12	MO118450072/0 In stock	Starting Switch	£30.97 £25.81
13	MO118550136/0 Available to backorder	Spacer	£1.55 £1.29
14	MO118550135/0 Available to backorder	Washer	£1.97 £1.64
15	MO118400862/0 Available to backorder	Threaded Ring Nut	£5.21 £4.34
16	MO118210022/0 In stock	Starting Key	£10.14 £8.45
17	MO118120068/0 In stock	Battery 12V 18Ah	£113.48 £94.57
18	MO125430230/0 Available to backorder	Spring	£3.79 £3.16
31	MO119410623/0 Available to backorder	Microswitch N.C. - White	£7.62 £6.35
36	MO118450084/0 Available to backorder	Headlight Switch	£4.50 £3.75
38	MO118450073/0 In stock	Clutch Switch Red	£14.92 £12.43
41	MO182040073/0 Available to backorder	Lamp Holder Harness LAMP	£16.51 £13.76
42	MO133500030/0 Available to backorder	Lamp Holder	£3.79 £3.16
43	MO118459100/0 Available to backorder	Lamp For Lights	£2.12 £1.77
44	MO182040192/0 Available to backorder	Wiring Harness LED	£19.01 £15.84
45	MO118459104/0 Available to backorder	Led Lamp	£41.96 £34.97
46	MO133500010/1 Available to backorder	Plate	£1.69 £1.41
47	MO112735170/0 Available to backorder	Screw	£1.14 £0.95
51	MO133320506/0 Available to backorder	Fairlead	£1.40 £1.17
52	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
54	MO118564864/1 Available to backorder	Protection	£5.92 £4.93
55	MO125290002/1 Available to backorder	Fuel Level Indicator	£57.23 £47.69
56	MO133567000/0 Available to backorder	Relay	£13.58 £11.32
61	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
62	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
63	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
64	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
65	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
66	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.55 £1.29
