XLR 220 HD - 2020 - 2T1835473/C20 - Castel Garden Ride On Mower TT Transmission Diagram

Name: XLR 220 HD - 2020 - 2T1835473/C20 - Castel Garden Ride On Mower TT Transmission Diagram
SKU: xlr_220_hd_2t1835473_c20_tt_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XLR 220 HD - 2020 - 2T1835473/C20 - Castel Garden Ride On Mower TT Transmission Diagram

Description

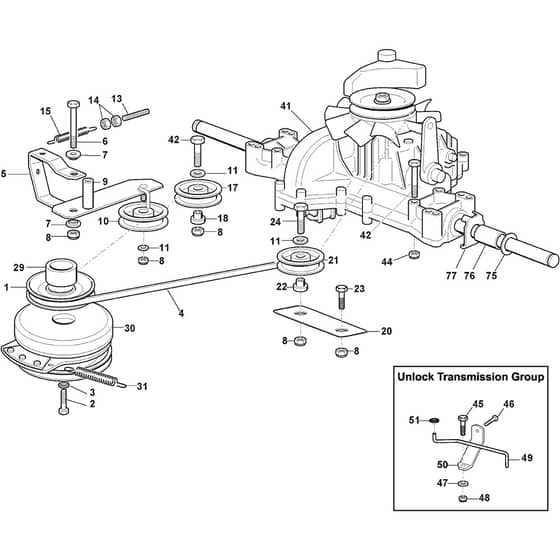

Castel Garden XLR 220 HD Parts Diagram

Product Name - XLR 220 HD

Model Year - 2020

Model Type - TX 108 Hydro SD

Art.N - 2T1835473/C20

Engine Model - ST 600 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
5	MO382318165/2 Available to backorder	Lever	£27.74 £23.12
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 In stock	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
11	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
18	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88
20	MO325547448/0 Available to backorder	Pulley Support Plate	£7.03 £5.86
21	MO382601522/0 In stock	Pulley	£23.92 £19.93
22	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
30	MO118399062/1 Available to backorder	Electromagnetic Clutch From S.N 22JA1RON000559	£341.58 £284.65
31	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
44	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
45	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
46	MO112735150/0 Available to backorder	Screw	£1.69 £1.41
47	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO125033129/0 Available to backorder	Rod	£6.34 £5.28
50	MO325785523/0 Available to backorder	Rear Support	£6.76 £5.63
51	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
75	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
