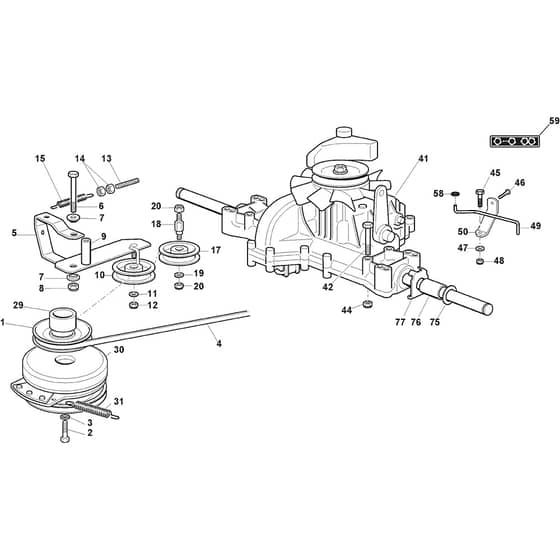

XLR 220 HD - 2017-2019 - 2T1845273/C17 - Castel Garden Ride On Mower TT Transmission Diagram

Description

Castel Garden XLR 220 HD Parts Diagram

Product Name - XLR 220 HD

Model Year - 2017-2019

Model Type - TX 108 Hydro SD

Art.N - 2T1845273/C17

Engine Model - Intek 7220 V-Twin Easy Start

	Part No.	Details
1	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
4	MO135062020/1 In stock	Trapezoidal Belt	£38.77 £32.31
5	MO382318165/2 Available to backorder	Lever	£27.76 £23.13
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.66 £21.38
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.18 £15.98
18	MO125510139/0 Available to backorder	Pin	£10.85 £9.04
19	MO112523060/0 In stock	Washer	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
30	MO118399062/1 Available to backorder	Electromagnetic Clutch	£351.52 £292.93
31	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
44	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
45	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
46	MO112735150/0 Available to backorder	Screw	£1.70 £1.42
47	MO112521350/0 In stock	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO125033129/0 Available to backorder	Rod	£6.32 £5.27
50	MO325785523/0 Available to backorder	Rear Support	£6.77 £5.64
58	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
59	MO114357423/2 Available to backorder	Label	£2.24 £1.87
75	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
