XLHT 270 4WD - 2017-2020 - 2T3040273/C17 - Castel Garden Ride On Mower Steering 02 Diagram

Name: XLHT 270 4WD - 2017-2020 - 2T3040273/C17 - Castel Garden Ride On Mower Steering 02 Diagram
SKU: xlht_270_4wd_2t3040273_c17_steering_02-group
Price: 1.29 GBP
Availability: InStock

Part No. xlht_270_4wd_2t3040273_c17_steering_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XLHT 270 4WD - 2017-2020 - 2T3040273/C17 - Castel Garden Ride On Mower Steering 02 Diagram

Description

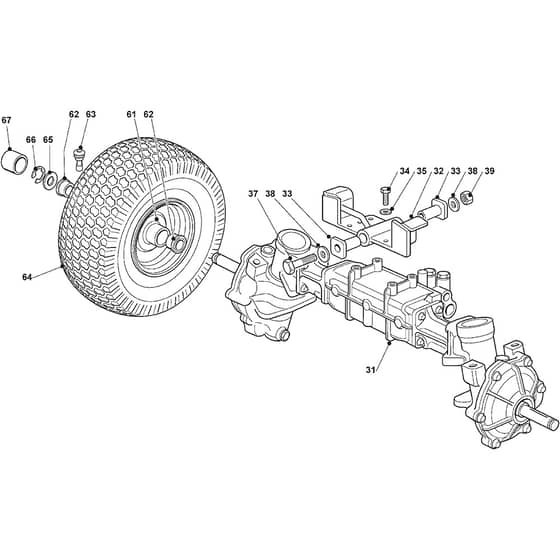

Castel Garden XLHT 270 4WD Parts Diagram

Product Name - XLHT 270 4WD

Model Year - 2017-2020

Model Type - TH4X 118 Hydro SD

Art.N - 2T3040273/C17

Engine Model - Intek 8270 V-Twin Easy Start

	Part No.	Details
1	MO118400974/0 Available to backorder	Hydrostatic Transaxle - Kanzaki (Kxh7N)	£1,172.45 £977.04
32	MO382547057/1 Available to backorder	Support	£197.09 £164.24
33	MO125040633/0 Available to backorder	Bushing	£15.49 £12.91
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
37	MO112695900/0 Available to backorder	Screw	£9.65 £8.04
38	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
39	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
61	MO182000601/1 Available to backorder	Front Wheel Rimm Light Grey Rimm	£91.50 £76.25
61	MO182001503/0 Available to backorder	Front Wheel Rimm Dark Grey Rimm	£105.58 £87.98
62	MO125122200/2 In stock	Bearing	£11.82 £9.85
63	MO125950000/0 In stock	Valve	£5.34 £4.45
64	MO125590036/0 Available to backorder	Tyre 16X6.50-8 Ply2 Tl K500E (Kenda) From 01-9-2019	£84.46 £70.38
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001010/0 In stock	Circlip	£1.84 £1.53
67	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
