XLHT 270 4WD - 2017-2020 - 2T3040273/C17 - Castel Garden Ride On Mower Fuel Tank Diagram

Name: XLHT 270 4WD - 2017-2020 - 2T3040273/C17 - Castel Garden Ride On Mower Fuel Tank Diagram
SKU: xlht_270_4wd_2t3040273_c17_fuel_tank-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

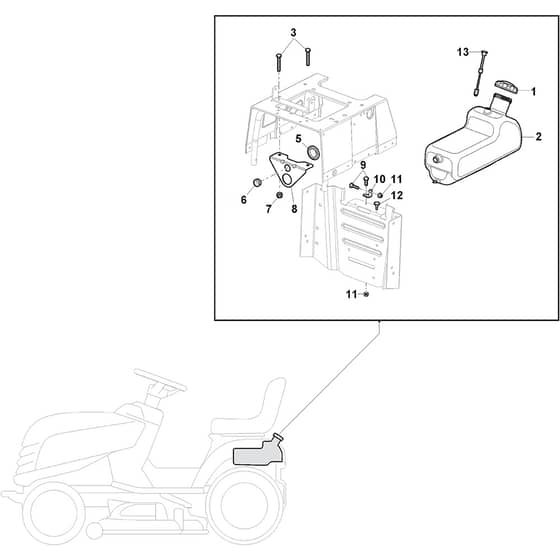

XLHT 270 4WD - 2017-2020 - 2T3040273/C17 - Castel Garden Ride On Mower Fuel Tank Diagram

Description

Castel Garden XLHT 270 4WD Parts Diagram

Product Name - XLHT 270 4WD

Model Year - 2017-2020

Model Type - TH4X 118 Hydro SD

Art.N - 2T3040273/C17

Engine Model - Intek 8270 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO137793050/0 Available to backorder	Fuel Cap	£45.26 £37.72
2	MO325735129/0 Available to backorder	Fuel Tank [15 Litres]	£109.79 £91.49
3	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
5	MO325260012/0 Available to backorder	Grommet	£6.47 £5.39
6	MO325038022/0 Available to backorder	Bushing	£1.69 £1.41
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO325774685/0 Available to backorder	Rear Fuel Tank Support Bracket	£9.72 £8.10
9	MO112791213/1 In stock	Screw	£1.55 £1.29
10	MO325547427/0 Available to backorder	Bracket	£3.52 £2.93
11	MO112292102/0 In stock	Nut	£1.69 £1.41
12	MO127275000/0 Available to backorder	Grommet	£3.10 £2.58
13	MO125290002/1 Available to backorder	Fuel Level Indicator	£57.23 £47.69
