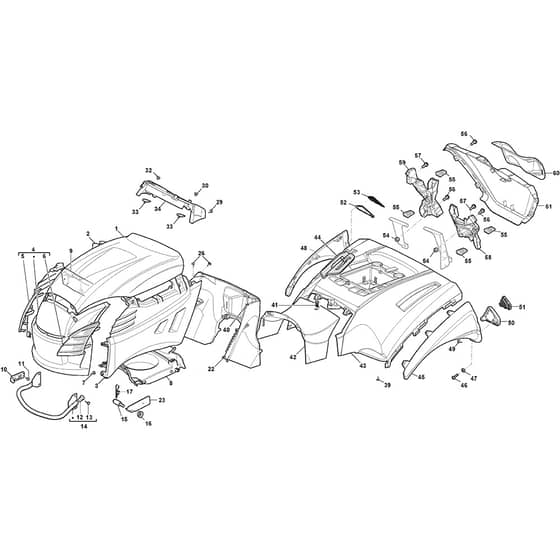

Castel Garden XLHT 270 4WD Parts Diagram

Product Name - XLHT 270 4WD

Model Year - 2017-2020

Model Type - TH4X 118 Hydro SD

Art.N - 2T3040273/C17

Engine Model - Intek 8270 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076979/0 Available to backorder	Upper Engine Hood. Red	£108.40 £90.33
2	MO325207120/1 Available to backorder	Hood. Right	£45.83 £38.19
3	MO325207121/1 Available to backorder	Hood. Left	£45.83 £38.19
4	MO382394647/0 Available to backorder	Hood. Front Light Grey	£88.68 £73.90
5	MO325410874/0 Available to backorder	Right Light Grill	£41.27 £34.39
6	MO325410875/0 Available to backorder	Left Light Plastic Cover	£41.27 £34.39
7	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
8	MO325108025/0 Available to backorder	Conveyor	£39.42 £32.85
9	MO125730021/0 Available to backorder	Intake Separator	£7.10 £5.92
12	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
13	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
14	MO382869039/1 Available to backorder	Muffler Protection From S.N 421494	£130.91 £109.09
15	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
16	MO112293201/0 In stock	Nut	£1.69 £1.41
17	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
22	MO325785449/0 Available to backorder	Black Dashboard Support	£75.31 £62.76
23	MO325547109/2 Available to backorder	Plate	£4.93 £4.11
26	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
29	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
30	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.24 £2.70
32	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
33	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
34	MO325120269/0 Available to backorder	Dashboard. Grey (Cruise Control) with Cruise Control	£43.21 £36.01
39	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
41	MO125580020/2 In stock	Stake	£8.29 £6.91
42	MO325110509/0 Available to backorder	Grey Central Cover	£49.26 £41.05
43	MO325109798/0 Available to backorder	Red Wheels Cover	£113.32 £94.43
44	MO325207184/1 Available to backorder	Cover From S.N 419644	£23.72 £19.77
45	MO325207267/0 Available to backorder	Left Wheel Cover	£20.96 £17.47
46	MO112728689/0 In stock	Screw	£1.40 £1.17
47	MO112523020/0 In stock	Washer	£1.55 £1.29
48	MO325207266/0 Available to backorder	Right Wheel Cover	£20.96 £17.47
49	MO112728686/0 In stock	Screw	£1.55 £1.29
50	MO325596502/0 Available to backorder	Left Rear Reflector Support	£3.94 £3.28
51	MO325069101/0 Available to backorder	Left Rear Reflector	£3.52 £2.93
52	MO325596501/0 Available to backorder	Right Rear Reflector Support	£3.94 £3.28
53	MO325069100/0 Available to backorder	Right Rear Reflector	£3.52 £2.93
54	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.69 £1.41
56	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
57	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
58	MO325785526/0 Available to backorder	Support. Left	£13.44 £11.20
59	MO325785525/0 Available to backorder	Support. Right	£13.44 £11.20
60	MO325207268/0 Available to backorder	Rear Cover Black	£14.92 £12.43
61	MO325110490/0 Available to backorder	Rear Cover [Red]	£58.57 £48.81
