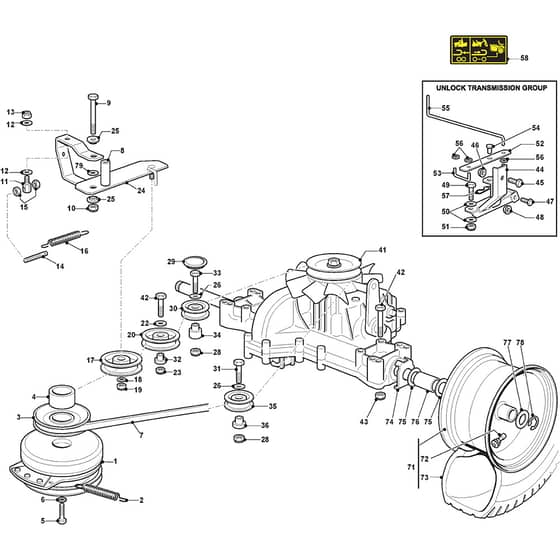

Castel Garden XHXY 240 Parts Diagram

Product Name - XHXY 240

Model Year - 2023

Model Type - THY 122 Hydro

Art.N - 2T1515253/C18

Engine Model -

	Part No.	Details
1	MO118399062/1 Available to backorder	Electromagnetic Clutch	£351.52 £292.93
2	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
3	MO125601580/0 Available to backorder	Pulley	£59.12 £49.27
4	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
5	MO112737320/0 In stock	Screw	£4.37 £3.64
6	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
7	MO135062029/0 Available to backorder	Belt	£113.10 £94.25
8	MO125160054/0 Available to backorder	Spacer	£4.24 £3.53
9	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
11	MO125510040/2 Available to backorder	Pin	£5.76 £4.80
11	MO125510168/0 Available to backorder	Pin	£4.50 £3.75
12	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
14	MO125840005/0 Available to backorder	Tie Rod	£2.94 £2.45
15	MO112293200/0 In stock	Nut	£1.55 £1.29
16	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
17	MO125601554/0 In stock	Pulley	£25.66 £21.38
20	MO325601599/0 In stock	Pulley	£19.18 £15.98
25	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
26	MO112523060/0 In stock	Washer	£1.55 £1.29
29	MO125109521/1 Available to backorder	Cover	£1.63 £1.36
30	MO325601570/1 In stock	Pulley	£24.37 £20.31
32	MO125160056/0 Available to backorder	Spacer	£4.64 £3.87
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
35	MO382601522/0 In stock	Pulley	£23.92 £19.93
36	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
43	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
44	MO382785175/0 Available to backorder	Support	£87.28 £72.73
45	MO112793102/0 In stock	Screw	£1.55 £1.29
47	MO112792611/0 In stock	Screw	£1.55 £1.29
48	MO112293201/0 In stock	Nut	£1.70 £1.42
49	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
50	MO112521350/0 In stock	Washer	£1.55 £1.29
51	MO112155000/0 In stock	Nut	£1.55 £1.29
53	MO125580031/0 Available to backorder	Rod	£4.08 £3.40
54	MO127510111/0 Available to backorder	Pin	£2.53 £2.11
55	MO125033079/0 Available to backorder	Rod	£11.54 £9.62
56	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
57	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
58	MO114363429/0 Available to backorder	Label	£3.10 £2.58
71	MO382680105/0 Available to backorder	Rear Wheel Assy 20"	£238.98 £199.15
71	MO182000602/0 Available to backorder	Rear Wheel Rimm Grey	£238.98 £199.15
72	MO125950000/0 In stock	Valve	£5.34 £4.45
73	MO125590037/0 Available to backorder	Tyre 20X10.00-10 Tl K500E (Kenda)	£147.79 £123.16
74	MO325670025/0 Available to backorder	Washer	£4.08 £3.40
75	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO125670005/2 In stock	Washer	£4.08 £3.40
78	MO112001010/0 In stock	Circlip	£1.84 £1.53
79	MO125670007/0 In stock	Fixing Washer	£1.97 £1.64
