XHXY 240 - 2023 - 2T1515253/C18 - Castel Garden Ride On Mower Seat Diagram

Name: XHXY 240 - 2023 - 2T1515253/C18 - Castel Garden Ride On Mower Seat Diagram
SKU: xhxy_240_2t1515253_c18_seat-group
Price: 1.29 GBP
Availability: InStock

Part No. xhxy_240_2t1515253_c18_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XHXY 240 - 2023 - 2T1515253/C18 - Castel Garden Ride On Mower Seat Diagram

Description

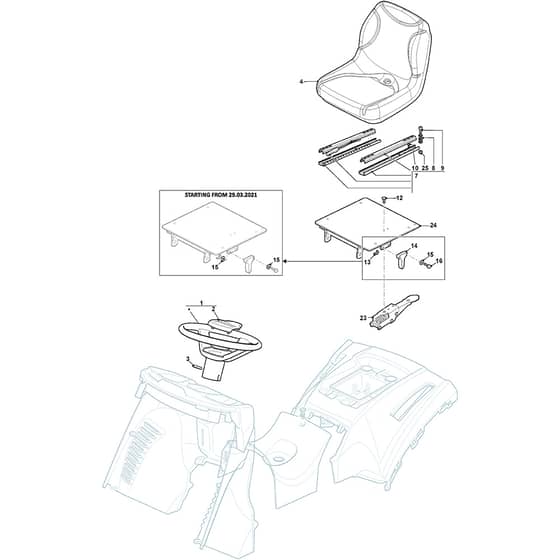

Castel Garden XHXY 240 Parts Diagram

Product Name - XHXY 240

Model Year - 2023

Model Type - THY 122 Hydro

Art.N - 2T1515253/C18

Engine Model -

	Part No.	Details
1	MO125961217/1 Available to backorder	Steering Wheel	£98.56 £82.13
2	MO325580505/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620250/0 Available to backorder	Pin	£1.55 £1.29
4	MO125722482/0 Available to backorder	Seat	£408.22 £340.18
7	MO382180115/0 Available to backorder	Guide Assy	£76.02 £63.35
8	MO112540060/0 Available to backorder	Washer	£1.55 £1.29
9	MO112760515/0 Available to backorder	Screw	£1.63 £1.36
10	MO112760605/0 In stock	Screw	£3.38 £2.82
11	MO112154330/0 In stock	Nut	£1.55 £1.29
12	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
13	MO112372550/0 Available to backorder	Wing Nut	£1.55 £1.29
14	MO325060049/0 Available to backorder	Seat Switch Cam	£2.24 £1.87
15	MO112523020/0 In stock	Washer From 29-3-2021	£1.55 £1.29
15	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
23	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
24	MO382735809/1 Available to backorder	Fixed Seat Support	£140.08 £116.73
25	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
