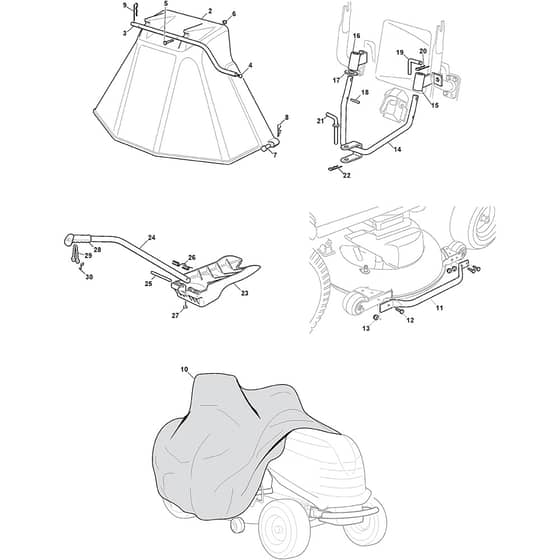

XHXY 240 - 2023 - 2T1515253/C18 - Castel Garden Ride On Mower Optionals Diagram

Name: XHXY 240 - 2023 - 2T1515253/C18 - Castel Garden Ride On Mower Optionals Diagram
SKU: xhxy_240_2t1515253_c18_optionals-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XHXY 240 - 2023 - 2T1515253/C18 - Castel Garden Ride On Mower Optionals Diagram

Description

Castel Garden XHXY 240 Parts Diagram

Product Name - XHXY 240

Model Year - 2023

Model Type - THY 122 Hydro

Art.N - 2T1515253/C18

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382400003/1 Available to backorder	Ejection Guard	£61.93 £51.61
3	MO325869043/0 Available to backorder	Rear Support	£18.59 £15.49
4	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
5	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO125510022/1 Available to backorder	Pin	£3.10 £2.58
8	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
10	MO1134-9177-01 In stock	Protective Cover	£66.37 £55.31
11	MO325869103/0 Available to backorder	Coupling Rod Stiga Grey	£68.99 £57.49
12	MO9959-0820-16 In stock	Screw	£1.55 £1.29
13	MO112293201/0 In stock	Nut	£1.69 £1.41
14	MO382033113/0 Available to backorder	Rod	£61.93 £51.61
15	MO382774265/0 Available to backorder	Bracket Right Hitch Support	£50.68 £42.23
16	MO382774267/0 Available to backorder	Bracket Left Hitch Support	£50.68 £42.23
17	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
18	MO112620305/0 Available to backorder	Elastic Pin	£1.82 £1.52
19	MO125510118/0 Available to backorder	Pin	£6.62 £5.52
20	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
21	MO125510021/1 In stock	Hitch Pin	£11.12 £9.27
22	MO124487999/0 Available to backorder	R Clip D.3	£1.82 £1.52
23	MO125140092/0 Available to backorder	Mulching Deflector	£33.79 £28.16
24	MO325394019/0 Available to backorder	Handle	£32.38 £26.98
25	MO125510074/0 Available to backorder	Pin	£2.26 £1.88
26	MO125430240/0 Available to backorder	Spring	£6.05 £5.04
27	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
28	MO325280000/1 Available to backorder	Handgrip	£3.10 £2.58
29	MO125840011/1 In stock	Tie Rod	£7.19 £5.99
30	MO125253004/0 Available to backorder	Mulch.Kit Fixing Hook	£1.55 £1.29
