XHX 240 4WD E - 2011-2012 - 2T1525273/11 - Castel Garden Ride On Mower Steering Diagram

Name: XHX 240 4WD E - 2011-2012 - 2T1525273/11 - Castel Garden Ride On Mower Steering Diagram
SKU: xhx_240_4wd_e_2t1525273_11_steering-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XHX 240 4WD E - 2011-2012 - 2T1525273/11 - Castel Garden Ride On Mower Steering Diagram

Description

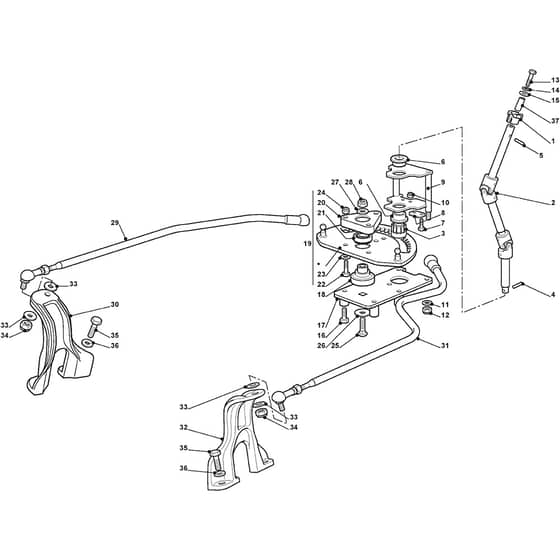

Castel Garden XHX 240 4WD E Parts Diagram

Product Name - XHX 240 4WD E

Model Year - 2011-2012

Model Type - TH4X 122 Hydro

Art.N - 2T1525273/11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO382543052/0 Available to backorder	Steering Column To 31-8-2011	£232.28 £193.57
2	MO382543053/0 Available to backorder	Steering Column From 01-9-2011	£309.70 £258.08
3	MO125570006/1 Available to backorder	Pinion	£68.99 £57.49
4	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
5	MO112620250/0 Available to backorder	Pin	£1.55 £1.29
6	MO125034004/0 Available to backorder	Brass	£5.76 £4.80
7	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
8	MO325487000/0 Available to backorder	Plate	£9.58 £7.98
9	MO382785209/0 Available to backorder	Support	£67.57 £56.31
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO112521360/0 In stock	Washer	£1.55 £1.29
12	MO112156602/0 In stock	Nut	£1.40 £1.17
13	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
14	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
16	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
17	MO382785207/0 Available to backorder	Support	£83.06 £69.22
18	MO125040641/0 Available to backorder	Support	£19.42 £16.18
19	MO382735523/0 Available to backorder	Steering Sector	£190.04 £158.37
20	MO325774453/0 Available to backorder	Clamp	£24.22 £20.18
21	MO119216047/0 In stock	Bearing	£15.78 £13.15
22	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
23	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
28	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
29	MO382000622/0 Available to backorder	Right Steering Command Rod Assy	£147.80 £123.17
30	MO325774491/1 Available to backorder	Steering Wheel Bracket	£54.90 £45.75
31	MO382000624/0 Available to backorder	Left Steering Command Rod Assy	£133.32 £111.10
32	MO325774493/0 Available to backorder	Steering Wheel Bracket	£56.32 £46.93
34	MO112155700/0 Available to backorder	Nut	£2.40 £2.00
35	MO112760585/0 Available to backorder	Screw	£1.55 £1.29
36	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
37	MO125160063/0 Available to backorder	Spacer	£7.03 £5.86
