XHX 240 4WD E - 2011-2012 - 2T1525273/11 - Castel Garden Ride On Mower Seat Diagram

Description

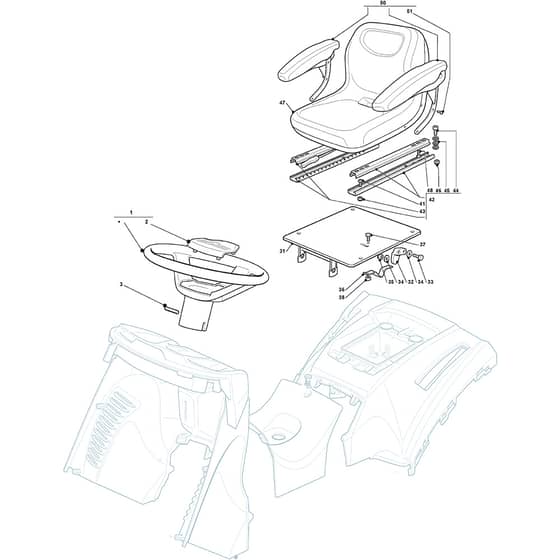

Castel Garden XHX 240 4WD E Parts Diagram

Product Name - XHX 240 4WD E

Model Year - 2011-2012

Model Type - TH4X 122 Hydro

Art.N - 2T1525273/11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO325580500/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
32	MO325060033/0 Available to backorder	Seat Switch Cam	£8.80 £7.33
33	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
34	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
35	MO112372550/0 Available to backorder	Wing Nut	£1.55 £1.29
36	MO125430223/2 Available to backorder	Spring	£6.20 £5.17
37	MO112789195/0 Available to backorder	Screw	£1.39 £1.16
38	MO112154330/0 In stock	Nut	£1.55 £1.29
42	MO382180115/0 Available to backorder	Guide Assy	£76.02 £63.35
44	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
45	MO112540060/0 Available to backorder	Washer	£1.55 £1.29
46	MO112155000/0 In stock	Nut	£1.55 £1.29
50	MO382180112/0 Available to backorder	Arm-Rest Assy	£210.06 £175.05
51	MO112760605/0 In stock	Screw Tbei M8 X 20	£3.38 £2.82
