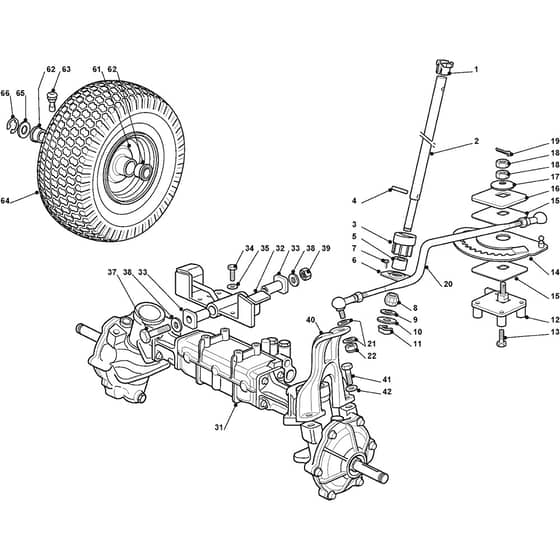

XHX 240 4WD E - 2010 - 2T1525273/10 - Castel Garden Ride On Mower Front Axle Diagram

Description

Castel Garden XHX 240 4WD E Parts Diagram

Product Name - XHX 240 4WD E

Model Year - 2010

Model Type - TH4X 122 Hydro

Art.N - 2T1525273/10

Engine Model - Intek V-Twin 24

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
3	MO125570000/2 In stock	Pinion	Was £12.82 £10.68 Special Price £8.14 £6.78
4	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
7	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
8	MO325743000/0 In stock	Joint	£2.68 £2.23
9	MO122671661/0 Available to backorder	Washer	£1.40 £1.17
10	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
11	MO112436030/0 In stock	Plate	£1.82 £1.52
12	MO382785187/0 Available to backorder	Support	£107.33 £89.44
13	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
16	MO125160504/0 Available to backorder	Spacer	£6.78 £5.65
17	MO122160400/0 In stock	Elastic Washer	£1.82 £1.52
19	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
22	MO112155700/0 Available to backorder	Nut	£2.40 £2.00
31	MO118400974/0 Available to backorder	Hydrostatic Transaxle - Kanzaki (Kxh7N)	£1,172.45 £977.04
32	MO382547057/1 Available to backorder	Support	£197.09 £164.24
33	MO125040633/0 Available to backorder	Bushing	£15.48 £12.90
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
37	MO112695900/0 Available to backorder	Screw	£9.64 £8.03
38	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
39	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
61	MO182000601/1 Available to backorder	Front Wheel Rimm	£91.51 £76.26
62	MO125122200/2 In stock	Bearing	£11.82 £9.85
63	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
64	MO125590036/0 Available to backorder	Tyre 16X6.50-8 Ply2 Tl S365 (Deli Tire)	£84.47 £70.39
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001010/0 Available to backorder	Circlip Id.0.580" Th.0.050"	£1.82 £1.52
