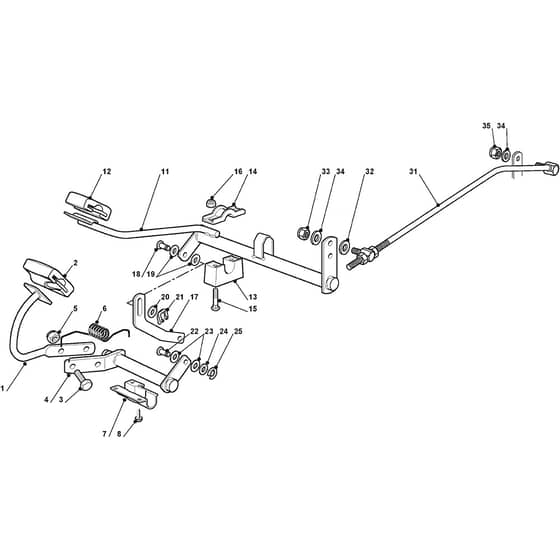

XHX 240 4WD E - 2010 - 2T1525273/10 - Castel Garden Ride On Mower Drive Controls Diagram

Description

Castel Garden XHX 240 4WD E Parts Diagram

Product Name - XHX 240 4WD E

Model Year - 2010

Model Type - TH4X 122 Hydro

Art.N - 2T1525273/10

Engine Model - Intek V-Twin 24

	Part No.	Details
2	MO325110275/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
4	MO382000559/1 Available to backorder	Reverse Pedal Axle Assy	£27.25 £22.71
6	MO125430246/1 Available to backorder	Spring	£2.69 £2.24
7	MO325547133/1 Available to backorder	Plate	£4.78 £3.98
8	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
12	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
13	MO325785185/0 Available to backorder	Support	£3.66 £3.05
14	MO327546015/2 Available to backorder	Plate From 01-9-2013	£1.55 £1.29
15	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
17	MO325547207/0 Available to backorder	Plate	£7.52 £6.27
21	MO112436050/0 In stock	Plate	£1.84 £1.53
22	MO125510085/1 Available to backorder	Pin	£1.55 £1.29
23	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
24	MO112521350/0 In stock	Washer	£1.55 £1.29
25	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
32	MO112523060/0 In stock	Washer	£1.55 £1.29
33	MO112155000/0 In stock	Nut	£1.55 £1.29
34	MO112523040/0 In stock	Washer	£1.55 £1.29
35	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
