XHX 240 4WD E - 2010 - 2T1525273/10 - Castel Garden Ride On Mower Cutting Plate Lifting 02 Diagram

Description

Castel Garden XHX 240 4WD E Parts Diagram

Product Name - XHX 240 4WD E

Model Year - 2010

Model Type - TH4X 122 Hydro

Art.N - 2T1525273/10

Engine Model - Intek V-Twin 24

Be the first to review this product

0 product questions

	Part No.	Details
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO125520009/0 Available to backorder	Axle	£18.31 £15.26
5	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
6	MO112436030/0 In stock	Plate	£1.82 £1.52
7	MO325060037/0 Available to backorder	Cam	£55.52 £46.27

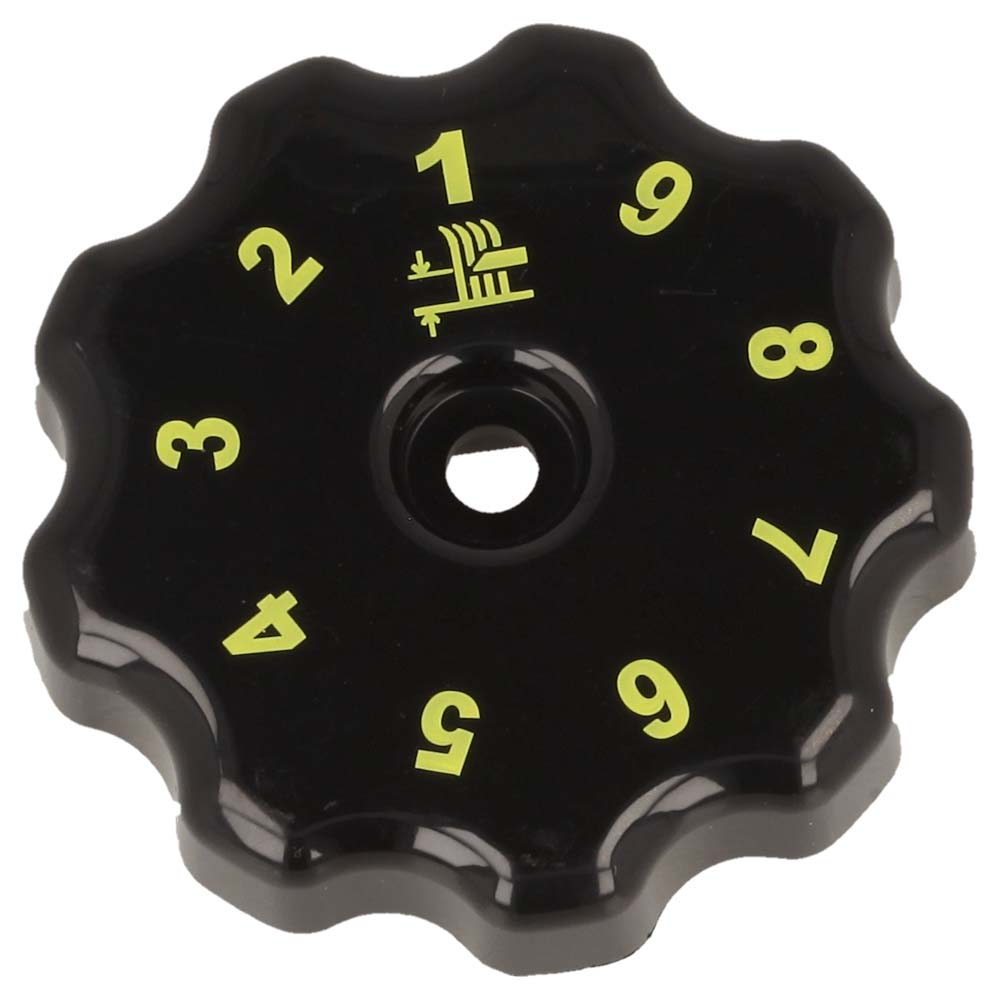

8	MO325394530/0 Available to backorder	Knob	£10.14 £8.45
9	MO112760600/1 Available to backorder	Screw	£2.26 £1.88
10	MO325430267/0 Available to backorder	Spring	£6.47 £5.39
11	MO122170600/0 Available to backorder	Spacer	£1.82 £1.52
12	MO112789195/0 Available to backorder	Screw	£1.39 £1.16
13	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
15	MO325785292/0 Available to backorder	Support	£11.47 £9.56
16	MO325547203/0 Available to backorder	Plate	£5.48 £4.57
17	MO112815240/0 Available to backorder	Screw	£2.06 £1.72
18	MO112154510/0 In stock	Nut	£1.55 £1.29
19	MO125943005/0 Available to backorder	Screw	£7.19 £5.99
31	MO382318159/0 Available to backorder	Front Right Fulcrum Lever	£20.14 £16.78
32	MO382318161/0 Available to backorder	Lever	£23.23 £19.36
33	MO125040605/0 Available to backorder	Bushing	£1.55 £1.29
34	MO325318161/1 Available to backorder	Lever	£9.00 £7.50
35	MO112691700/0 In stock	Screw	£1.82 £1.52
38	MO125510069/1 Available to backorder	Pin	£8.59 £7.16
43	MO382000477/3 Available to backorder	Cuttining Deck Lever Front Connecting Rod	£18.31 £15.26
44	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
47	MO112155000/0 In stock	Nut	£1.55 £1.29
48	MO112293200/0 In stock	Nut	£1.55 £1.29
49	MO325318153/2 Available to backorder	Rear Lever	£14.50 £12.08
50	MO112609255/0 Available to backorder	Seeger	£1.55 £1.29
51	MO325318223/0 Available to backorder	Gearshift	£6.76 £5.63
55	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
56	MO325670008/1 In stock	Washer	£1.55 £1.29
57	MO112156602/0 In stock	Nut	£1.40 £1.17
58	MO112794985/0 Available to backorder	Screw	£4.08 £3.40
59	MO112295200/0 In stock	Nut	£1.40 £1.17
60	MO125510070/1 Available to backorder	Pin	£6.20 £5.17
61	MO112523090/0 Available to backorder	Washer	£1.82 £1.52
62	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
63	MO125510053/2 Available to backorder	Pin	£1.97 £1.64
64	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
65	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
66	MO112436050/0 In stock	Plate	£1.82 £1.52
67	MO112521350/0 Available to backorder	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
