XHTY 240 4WD - 2018-2024 - 2T1425253/C18 - Castel Garden Ride On Mower Body Diagram

Description

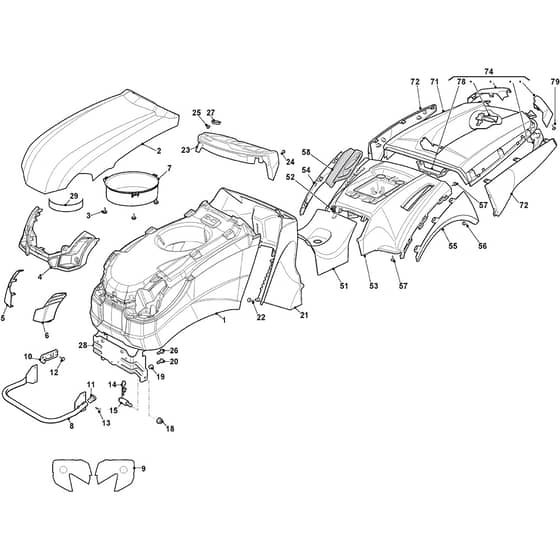

Castel Garden XHTY 240 4WD Parts Diagram

Product Name - XHTY 240 4WD

Model Year - 2018-2024

Model Type - TH4Y 102 Hydro

Art.N - 2T1425253/C18

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076988/0 Available to backorder	Lower Engine Hood. Grey	£183.01 £152.51
2	MO325076987/0 Available to backorder	Upper Engine Hood Red Dark Red	£116.15 £96.79
3	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
4	MO325076920/0 Available to backorder	Front Cover Black	£11.82 £9.85
5	MO325410905/0 Available to backorder	Headlight Grill. Right	£9.08 £7.57
6	MO325410906/0 Available to backorder	Headlight Grill. Left	£10.56 £8.80
7	MO325108055/0 Available to backorder	Conveyor	£10.70 £8.92
8	MO382869039/1 Available to backorder	Muffler Protection	£130.91 £109.09
9	MO114366315/0 Available to backorder	Light Reflector Label	£43.64 £36.37
10	MO325547159/1 Available to backorder	Plate	£4.66 £3.88
11	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
12	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
13	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
14	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
15	MO125510169/1 Available to backorder	Pin From S.N 22AA1RON002961	£2.40 £2.00
18	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
19	MO122170600/0 Available to backorder	Spacer	£1.82 £1.52
20	MO112735406/0 Available to backorder	Screw	£1.55 £1.29
21	MO325785449/0 Available to backorder	Black Dashboard Support Stiga Grey NCS8000N	£75.31 £62.76
23	MO325120269/0 Available to backorder	Dashboard. Grey (Cruise Control) with Cruise Control	£43.21 £36.01
24	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
25	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
26	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
27	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
28	MO325774301/2 Available to backorder	Engine Hood Support	£17.74 £14.78
29	MO125730027/0 Available to backorder	Intake Separator	£8.59 £7.16
51	MO325110509/0 Available to backorder	Grey Central Cover Stiga Grey NCS8000N	£49.26 £41.05
52	MO125580020/2 In stock	Stake	£8.29 £6.91
53	MO325109798/0 Available to backorder	Red Wheels Cover Dark Red	£113.32 £94.43
54	MO325109747/0 Available to backorder	Wheels Cover	£19.30 £16.08
55	MO325109748/0 Available to backorder	Left Wheel Cover	£19.99 £16.66
56	MO112728697/0 In stock	Screw	£1.55 £1.29
58	MO325207184/1 Available to backorder	Cover	£23.72 £19.77
71	MO325110482/0 Available to backorder	Red Grass-Catcher Cover Dark Red	£139.37 £116.14
72	MO382110299/0 Available to backorder	Side Profil Assy Grey NCS8000N	£53.50 £44.58
74	MO382110300/1 Available to backorder	Angular Support Assy Black + Grey NCS8000N	£33.54 £27.95
78	MO325394009/0 Available to backorder	Handle Cover	£33.54 £27.95
79	MO112735402/0 Available to backorder	Flanged Hex-Head Screw D.6 X 18 Wz	£1.55 £1.29
