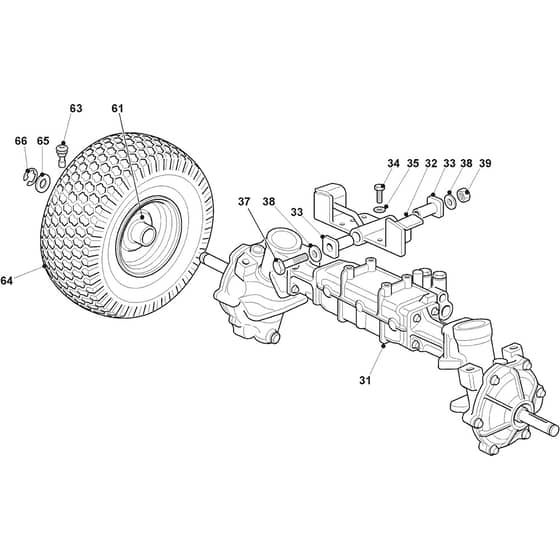

XHTY 240 4WD - 2017-2018 - 2T1425253/C17 - Castel Garden Ride On Mower Front Axle Diagram

Description

Castel Garden XHTY 240 4WD Parts Diagram

Product Name - XHTY 240 4WD

Model Year - 2017-2018

Model Type - TH4Y 102 Hydro

Art.N - 2T1425253/C17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118400974/0 Available to backorder	Hydrostatic Transaxle - Kanzaki (Kxh7N)	£1,172.45 £977.04
32	MO382547057/1 Available to backorder	Support	£197.09 £164.24
33	MO125040633/0 Available to backorder	Bushing	£15.48 £12.90
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
37	MO112695900/0 Available to backorder	Screw	£9.64 £8.03
38	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
39	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
61	MO182000601/1 Available to backorder	Front Wheel Rimm	£91.51 £76.26
63	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
64	MO125590036/0 Available to backorder	Tyre 16X6.50-8 Ply2 Tl K500E (Kenda) From 01-9-2019	£84.47 £70.39
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001010/0 Available to backorder	Circlip Id.0.580" Th.0.050"	£1.82 £1.52
