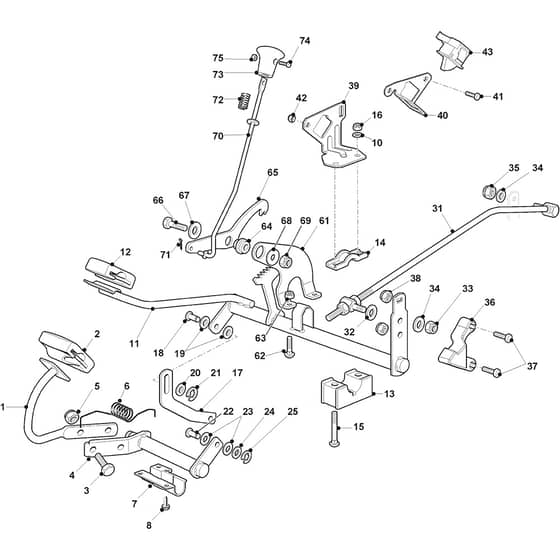

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2022

Model Type - TH4X 102 Hydro

Art.N - 2T1425473/SBR

Engine Model -

	Part No.	Details
1	MO382500045/0 Available to backorder	Pedal	£39.42 £32.85
2	MO325110275/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
4	MO382000559/1 Available to backorder	Reverse Pedal Axle Assy	£27.25 £22.71
6	MO125430246/1 Available to backorder	Spring	£2.69 £2.24
7	MO325547133/1 Available to backorder	Plate	£4.78 £3.98
8	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO382000617/2 Available to backorder	Drive Pedal Axle Assy	£84.46 £70.38
12	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
13	MO325785185/0 Available to backorder	Support	£3.66 £3.05
14	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
15	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
17	MO325547207/0 Available to backorder	Plate	£7.52 £6.27
22	MO125510085/1 Available to backorder	Pin	£1.55 £1.29
23	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
24	MO112521350/0 In stock	Washer	£1.55 £1.29
25	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
31	MO382000612/1 Available to backorder	Feed Control Axle Assy	£57.71 £48.09
34	MO112523040/0 In stock	Washer	£1.55 £1.29
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO325060050/0 Available to backorder	Cam	£4.93 £4.11
37	MO112789021/0 Available to backorder	Screw	£1.84 £1.53
38	MO112154330/0 In stock	Nut	£1.55 £1.29
40	MO325785479/0 Available to backorder	Micro Switch Bracket	£8.66 £7.22
41	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
43	MO119410623/0 In stock	Microswitch	£7.62 £6.35
61	MO325774477/0 Available to backorder	Clamp	£24.78 £20.65
62	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
63	MO112292102/0 In stock	Nut	£1.70 £1.42
64	MO125040638/0 Available to backorder	Bushing	£5.47 £4.56
65	MO325022000/1 Available to backorder	Hook	£39.42 £32.85
66	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
67	MO112523060/0 In stock	Washer	£1.55 £1.29
68	MO322672152/0 Available to backorder	Antifriction Washer	£1.84 £1.53
69	MO112155000/0 In stock	Nut	£1.55 £1.29
70	MO125033092/0 Available to backorder	Feed Control Rod	£26.05 £21.71
71	MO124487995/0 In stock	Cotter Pin	£1.55 £1.29
72	MO125430232/0 Available to backorder	Spring	£1.55 £1.29
73	MO325605002/0 Available to backorder	Button	£2.40 £2.00
74	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
75	MO112290800/0 Available to backorder	Hexagon Nut M4 Uni 5588 Acc.6S	£1.55 £1.29
