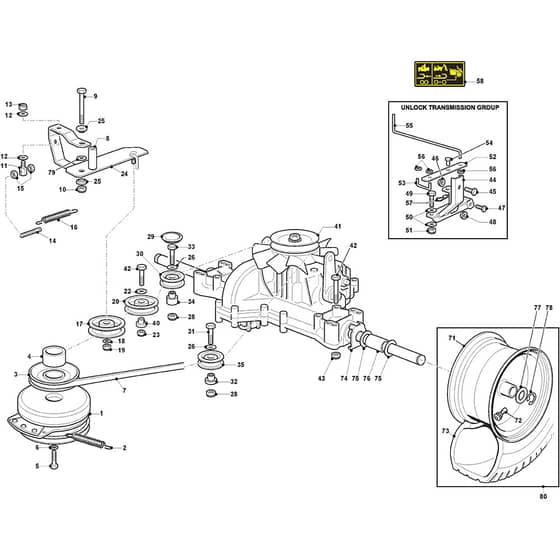

XHT 240 4WD - 2022 - 2T1425473/SBR - Castel Garden Ride On Mower Clutch Diagram

Description

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2022

Model Type - TH4X 102 Hydro

Art.N - 2T1425473/SBR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118399062/1 Available to backorder	Electromagnetic Clutch	£341.58 £284.65
2	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
3	MO125601580/0 Available to backorder	Pulley	£59.12 £49.27
4	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
5	MO112737320/0 In stock	Screw	£4.37 £3.64
6	MO112543000/0 Available to backorder	Washer	£1.55 £1.29

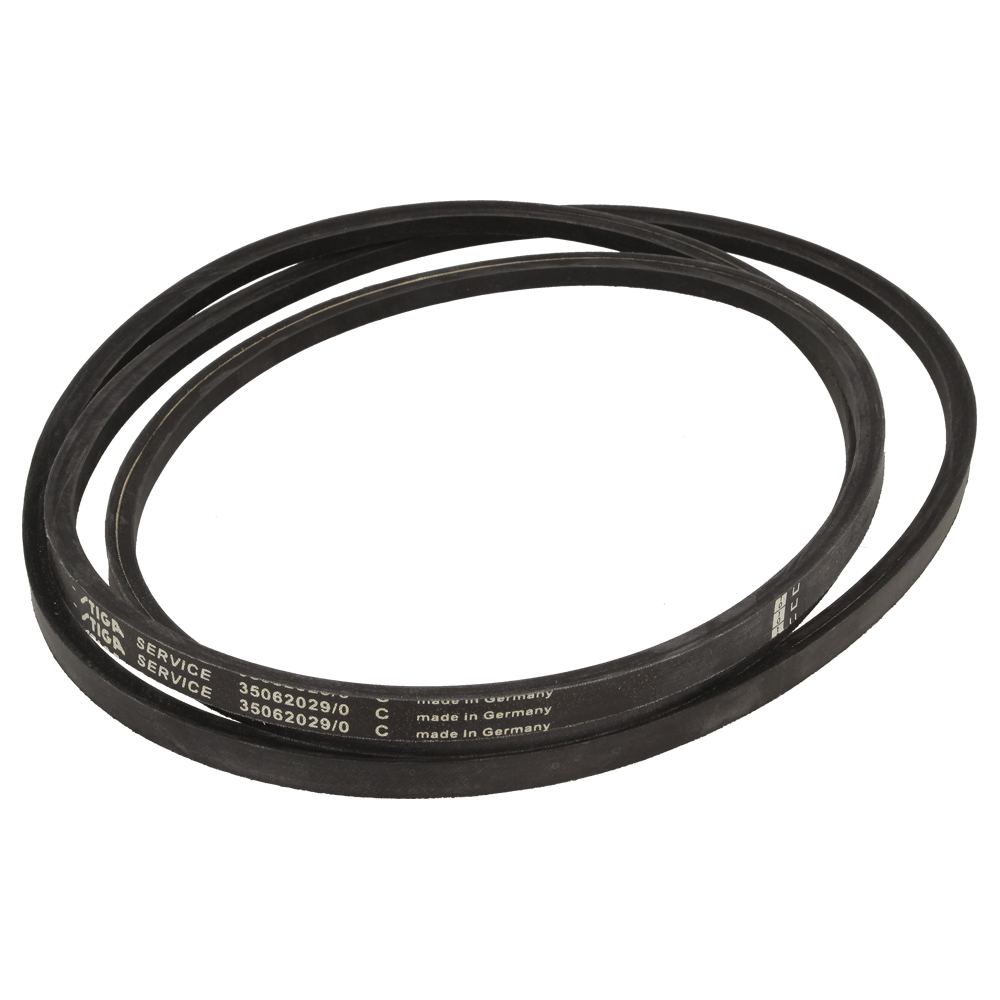

7	MO135062029/0 Available to backorder	Belt	£113.11 £94.26
8	MO125160054/0 Available to backorder	Spacer	£4.22 £3.52
9	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
11	MO125510168/0 Available to backorder	Pin From S.N 21DA1RON000001	£4.50 £3.75
11	MO125510040/2 Available to backorder	Pin To S.N 21DA1RON000000	£5.76 £4.80
12	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
14	MO125840005/0 Available to backorder	Tie Rod	£2.95 £2.46
15	MO112293200/0 In stock	Nut	£1.55 £1.29
16	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO125601554/0 In stock	Pulley	£25.68 £21.40
20	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
25	MO125038002/1 In stock	Bushing	£1.55 £1.29
26	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO125109521/1 Available to backorder	Cover	£1.55 £1.29
30	MO325601570/1 Available to backorder	Pulley	£24.36 £20.30
32	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
35	MO382601522/0 In stock	Pulley	£23.92 £19.93
40	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88

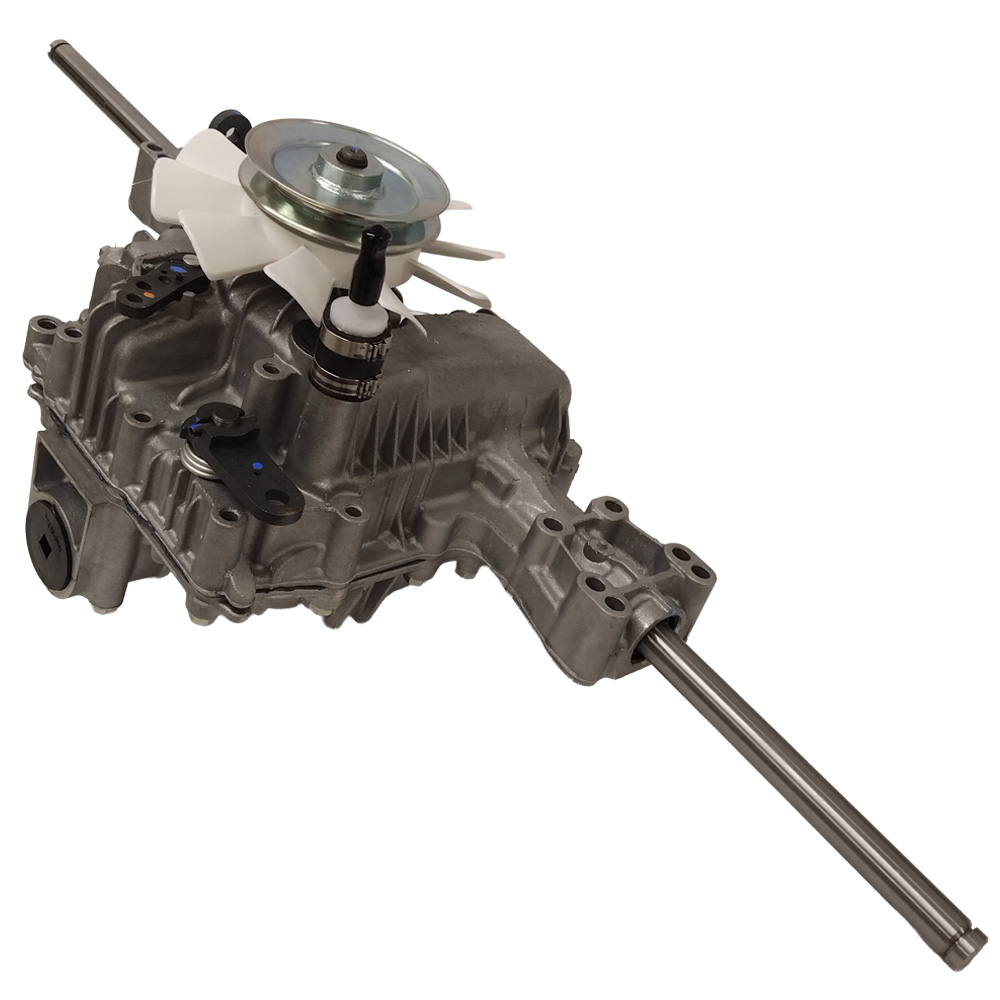

41	MO118400975/0 Available to backorder	Hydrostatic Transaxle - Tufftorq (K574D)	£1,401.84 £1,168.20
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
43	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
44	MO382785175/0 Available to backorder	Support	£87.28 £72.73
45	MO112793102/0 In stock	Screw	£1.55 £1.29
47	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
48	MO112293201/0 In stock	Nut	£1.69 £1.41
49	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
50	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
51	MO112155000/0 In stock	Nut	£1.55 £1.29
53	MO125580031/0 Available to backorder	Rod	£4.08 £3.40
54	MO127510111/0 Available to backorder	Pin	£2.53 £2.11
55	MO125033079/0 Available to backorder	Rod	£11.53 £9.61
56	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
57	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
58	MO114363696/0 Available to backorder	Unblocking Lever Decal	£3.10 £2.58
71	MO182000602/0 Available to backorder	Rear Wheel Rimm Light Grey Rimm	£133.67 £111.39
72	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
73	MO125590037/0 Available to backorder	Tyre 20X10.00-10 Tl K500E (Kenda)	£147.80 £123.17
74	MO325670025/0 Available to backorder	Washer	£4.08 £3.40
75	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO125670005/2 In stock	Washer	£4.08 £3.40
78	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
79	MO125670007/0 In stock	Washer	£1.97 £1.64
80	MO382680088/0 Available to backorder	Wheel Assembly 20" [Kenda] K500E	£239.32 £199.43
