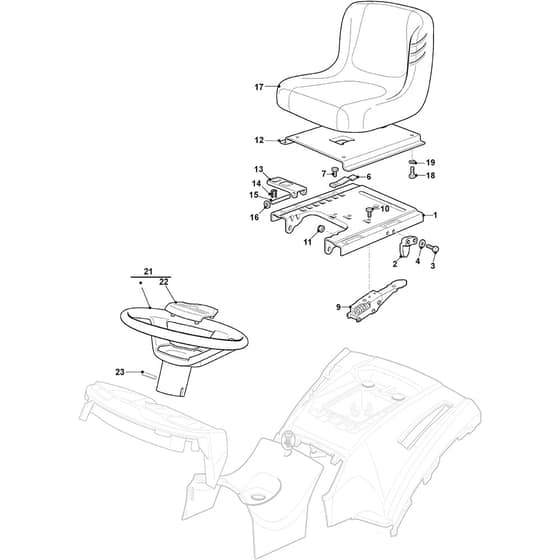

XHT 240 4WD - 2025 - 2T1425473/C22 - Castel Garden Ride On Mower Frame 02 Diagram

Name: XHT 240 4WD - 2025 - 2T1425473/C22 - Castel Garden Ride On Mower Frame 02 Diagram
SKU: xht_240_4wd_2t1425473_c22_frame_02-group
Price: 1.16 GBP
Availability: InStock

Part No. xht_240_4wd_2t1425473_c22_frame_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XHT 240 4WD - 2025 - 2T1425473/C22 - Castel Garden Ride On Mower Frame 02 Diagram

Description

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2025

Model Type - TH4X 102 Hydro

Art.N - 2T1425473/C22

Engine Model - ST 650 Twin

	Part No.	Details
1	MO382785301/0 Available to backorder	Fixed Seat Support	£43.63 £36.36
2	MO325060049/0 Available to backorder	Seat Switch Cam	£2.24 £1.87
3	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
4	MO112523020/0 In stock	Washer	£1.55 £1.29
6	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
7	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
9	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
10	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
11	MO112154330/0 In stock	Nut	£1.55 £1.29
12	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
13	MO325318109/1 Available to backorder	Stop Lever	£4.50 £3.75
14	MO125430202/1 Available to backorder	Spring	£1.70 £1.42
15	MO125510000/0 Available to backorder	Pin	£1.39 £1.16
16	MO112604897/0 Available to backorder	Elastic Washer	£1.63 £1.36
17	MO125722468/0 Available to backorder	Seat	£316.75 £263.96
18	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO112583500/0 In stock	Grower	£1.55 £1.29
21	MO125961217/1 Available to backorder	Steering Wheel	£98.56 £82.13
22	MO325580505/0 Available to backorder	Cap	£7.62 £6.35
23	MO112620250/0 Available to backorder	Pin 6 X 24	£1.55 £1.29
