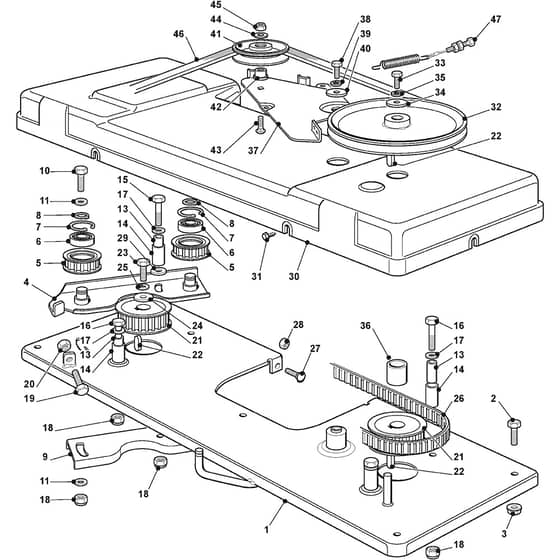

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2025

Model Type - TH4X 102 Hydro

Art.N - 2T1425473/C22

Engine Model - ST 650 Twin

	Part No.	Details
1	MO382547029/3 Available to backorder	Blade Transmission Plate	£115.42 £96.18
2	MO112792611/0 In stock	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.70 £1.42
4	MO382785084/3 Available to backorder	Support	£32.38 £26.98
5	MO125601559/1 In stock	Toothed Pulley Metal	£40.82 £34.02
5	MO325601615/0 Available to backorder	Toothed Pulley Plastic	£40.82 £34.02
6	MO119216048/0 In stock	Bearing	£18.31 £15.26
7	MO112610800/0 In stock	Seeger	£1.70 £1.42
8	MO112609200/0 Available to backorder	Seeger	£1.63 £1.36
9	MO325650037/1 Available to backorder	Pulley Stiffening	£8.45 £7.04
13	MO125160003/2 Available to backorder	Spacer	£1.84 £1.53
14	MO125038000/0 In stock	Bushing	£1.55 £1.29
15	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
16	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
17	MO112521350/0 In stock	Washer	£1.55 £1.29
18	MO112155000/0 In stock	Nut	£1.55 £1.29
19	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO125601560/0 Available to backorder	Pulley	£54.90 £45.75
22	MO112139480/0 In stock	Feather	£1.70 £1.42
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO125670007/0 In stock	Washer	£1.97 £1.64
25	MO112583500/0 In stock	Grower	£1.55 £1.29
26	MO135065605/0LC In stock	Belt	£91.60 £76.33
27	MO112815200/0 In stock	Screw	£1.55 £1.29
28	MO112292102/0 In stock	Nut	£1.70 £1.42
29	MO122671651/0 In stock	Washer	£1.97 £1.64
47	MO182004608/0 In stock	Blade Engage Cable	£23.23 £19.36
