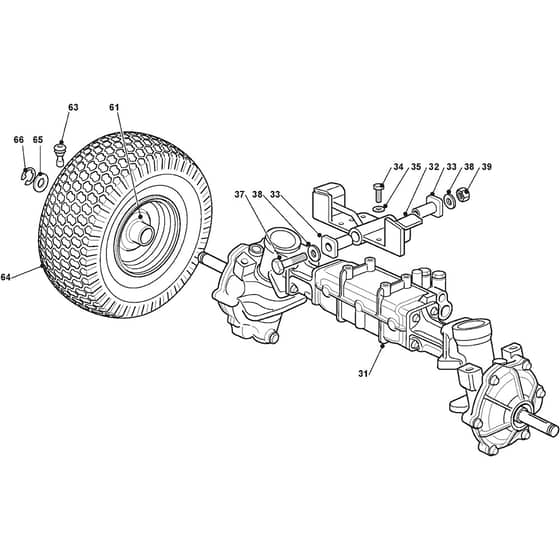

XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Front Axle Diagram

Description

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2014-2021

Model Type - TH4X 102 Hydro

Art.N - 2T1425273/14

Engine Model - Intek 8240 V-Twin Easy Start

	Part No.	Details
1	MO118400974/0 Available to backorder	Hydrostatic Transaxle - Kanzaki (Kxh7N)	£1,172.45 £977.04
32	MO382547057/1 Available to backorder	Support	£197.09 £164.24
33	MO125040633/0 Available to backorder	Bushing	£15.49 £12.91
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
37	MO112695900/0 Available to backorder	Screw	£9.65 £8.04
38	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
39	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
61	MO182000601/1 Available to backorder	Front Wheel Rimm Light Grey	£91.50 £76.25
63	MO125950000/0 In stock	Valve	£5.34 £4.45
64	MO125590036/0 Available to backorder	Tyre 16X6.50-8 P332 (Wanda) From 01-9-2013	£84.46 £70.38
65	MO125670005/2 In stock	Washer From 01-9-2014	£4.08 £3.40
66	MO112001010/0 In stock	Circlip Id.0.580" Th.0.050"	£1.84 £1.53
