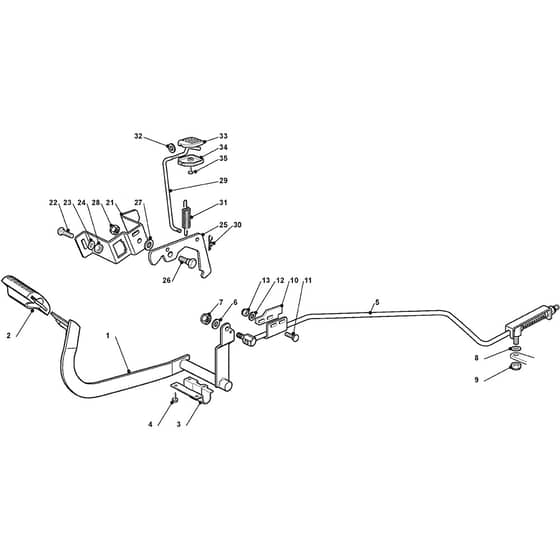

XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Brake Controls Diagram

Name: XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Brake Controls Diagram
SKU: xht_240_4wd_2t1425273_14_brake_controls-group
Price: 1.16 GBP
Availability: InStock

Part No. xht_240_4wd_2t1425273_14_brake_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Brake Controls Diagram

Description

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2014-2021

Model Type - TH4X 102 Hydro

Art.N - 2T1425273/14

Engine Model - Intek 8240 V-Twin Easy Start

	Part No.	Details
1	MO382500041/0 Available to backorder	Pedal	£94.32 £78.60
2	MO125110267/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
8	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO325547281/1 Available to backorder	Plate	£6.64 £5.53
21	MO325785143/1 Available to backorder	Support	£4.50 £3.75
22	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO325253009/0 Available to backorder	Hook	£14.93 £12.44
26	MO122524970/2 Available to backorder	Fulcrum Pin From S.N 23630	£1.90 £1.58
26	MO122524970/3 Available to backorder	Pin From S.N 23631	£1.70 £1.42
27	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
28	MO112155000/0 In stock	Nut	£1.55 £1.29
29	MO125033097/0 Available to backorder	Rod	£13.87 £11.56
30	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
31	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
32	MO112523040/0 In stock	Washer	£1.55 £1.29
33	MO325592001/1 Available to backorder	Knob From 01-9-2012	£1.39 £1.16
34	MO325592002/1 Available to backorder	Knob From 01-9-2012	£1.39 £1.16
35	MO112727815/0 Available to backorder	Screw 8P X 3.8	£1.39 £1.16
