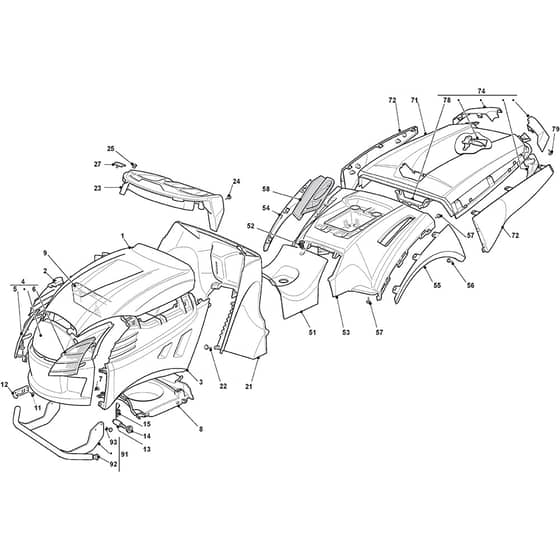

XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Body Diagram

Name: XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Body Diagram
SKU: xht_240_4wd_2t1425273_14_body-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XHT 240 4WD - 2014-2021 - 2T1425273/14 - Castel Garden Ride On Mower Body Diagram

Description

Castel Garden XHT 240 4WD Parts Diagram

Product Name - XHT 240 4WD

Model Year - 2014-2021

Model Type - TH4X 102 Hydro

Art.N - 2T1425273/14

Engine Model - Intek 8240 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076858/0 Available to backorder	Red Upper Bonnet	£103.12 £85.93
2	MO325207120/1 Available to backorder	Hood. Right	£45.83 £38.19
3	MO325207121/1 Available to backorder	Hood. Left	£45.83 £38.19
4	MO382394647/0 Available to backorder	Hood. Front Light Grey	£88.68 £73.90
5	MO325410874/0 Available to backorder	Right Light Grill	£41.27 £34.39
6	MO325410875/0 Available to backorder	Left Light Plastic Cover	£41.27 £34.39
7	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
8	MO325108025/0 Available to backorder	Conveyor	£39.42 £32.85
9	MO125730021/0 Available to backorder	Intake Separator	£7.10 £5.92
11	MO325547109/2 Available to backorder	Plate	£4.93 £4.11
12	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
13	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
14	MO112293201/0 In stock	Nut	£1.69 £1.41
15	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
21	MO325785228/1 Available to backorder	Dashboard Support	£71.80 £59.83
23	MO325120269/0 Available to backorder	Dashboard. Red (Cruise Control) with Cruise Control From 01-9-2016	£43.21 £36.01
24	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
25	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
27	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
51	MO325110509/0 Available to backorder	Grey Central Cover Grey From 01-9-2017	£49.26 £41.05
52	MO125580020/2 In stock	Stake	£8.29 £6.91
53	MO325109744/0 Available to backorder	Red Wheels Cover	£130.91 £109.09
54	MO325109747/0 Available to backorder	Wheels Cover	£19.30 £16.08
55	MO325109748/0 Available to backorder	Left Wheel Cover	£19.99 £16.66
56	MO112728686/0 In stock	Screw	£1.55 £1.29
57	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
58	MO325207184/1 Available to backorder	Cover From S.N 419644	£23.72 £19.77
71	MO325110302/0 Available to backorder	Red Grass-Catcher Cover	£167.53 £139.61
72	MO382110256/0 Available to backorder	Cover Assy	£53.50 £44.58
74	MO382110306/1 Available to backorder	Angles Assy From 01-9-2016	£51.12 £42.60
78	MO325394009/0 Available to backorder	Handle Cover	£33.54 £27.95
79	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
91	MO382869039/1 Available to backorder	Muffler Protection From S.N 421494	£130.91 £109.09
92	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
93	MO112735120/0 Available to backorder	Flanged Self-Tap Screw 6.3 X 16	£1.55 £1.29
