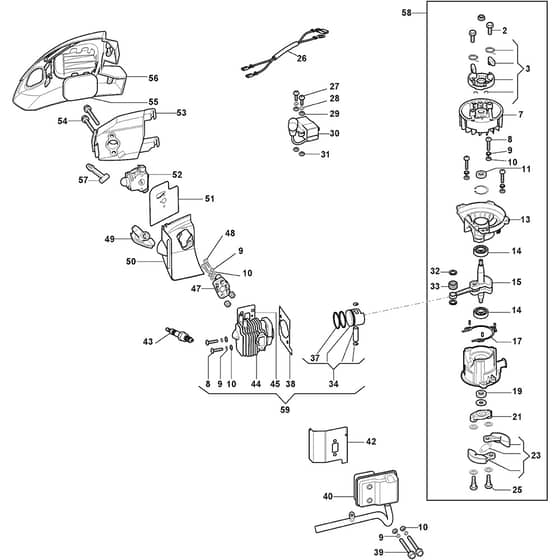

XH 60 - 2019-2020 - 252961003/C19 - Castel Garden Hedge Trimmer Engine Diagram

Name: XH 60 - 2019-2020 - 252961003/C19 - Castel Garden Hedge Trimmer Engine Diagram
SKU: xh_60_252961003_c19_engine-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XH 60 - 2019-2020 - 252961003/C19 - Castel Garden Hedge Trimmer Engine Diagram

Description

Castel Garden XH 60 Parts Diagram

Product Name - XH 60

Model Year - 2019-2020

Model Type - H 60

Art.N - 252961003/C19

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123878109/0 Available to backorder	Screw	£1.55 £1.29
3	MO183082003/0 In stock	Starter Cup	£4.78 £3.98
7	MO118802744/0 Available to backorder	Flywheel Euro-2	£30.97 £25.81
11	MO119035164/0 Available to backorder	Seal Ring	£2.53 £2.11
13	MO123685020/0 Available to backorder	Crank Case	£23.65 £19.71
14	MO114215222/0 Available to backorder	Ball Bearing	£9.00 £7.50
15	MO123020033/1 Available to backorder	Crankshaft Euro-2	£45.04 £37.53
17	MO123280077/0 Available to backorder	Crankcase Gasket	£1.97 £1.64
19	MO119035165/0 Available to backorder	Seal Ring	£2.53 £2.11
21	MO123445268/0 Available to backorder	Hub	£5.76 £4.80
23	MO183215010/0 Available to backorder	Clutch Ass.Y	£8.17 £6.81
25	MO123878111/0 Available to backorder	Screw	£1.97 £1.64
26	MO123065045/0 Available to backorder	Spark Plug Cable	£5.77 £4.81
28	MO123657013/0 Available to backorder	Washer	£1.33 £1.11
29	MO123657017/0 Available to backorder	Washer	£2.26 £1.88
30	MO118806490/0 Available to backorder	Ignition Ass'Y Euro-2	£51.84 £43.20
31	MO123160063/0 Available to backorder	Spacer	£1.33 £1.11
32	MO123652505/0 Available to backorder	Washer	£2.95 £2.46
33	MO123235008/0 In stock	Needle Bearing	Was £4.96 £4.13 Special Price £2.38 £1.98
34	MO183590007/0 Available to backorder	Piston Assy	£15.90 £13.25
37	MO123204016/0 Available to backorder	Piston Ring	£2.26 £1.88
38	MO123280078/0 Available to backorder	Cilynder Gasket	£2.12 £1.77

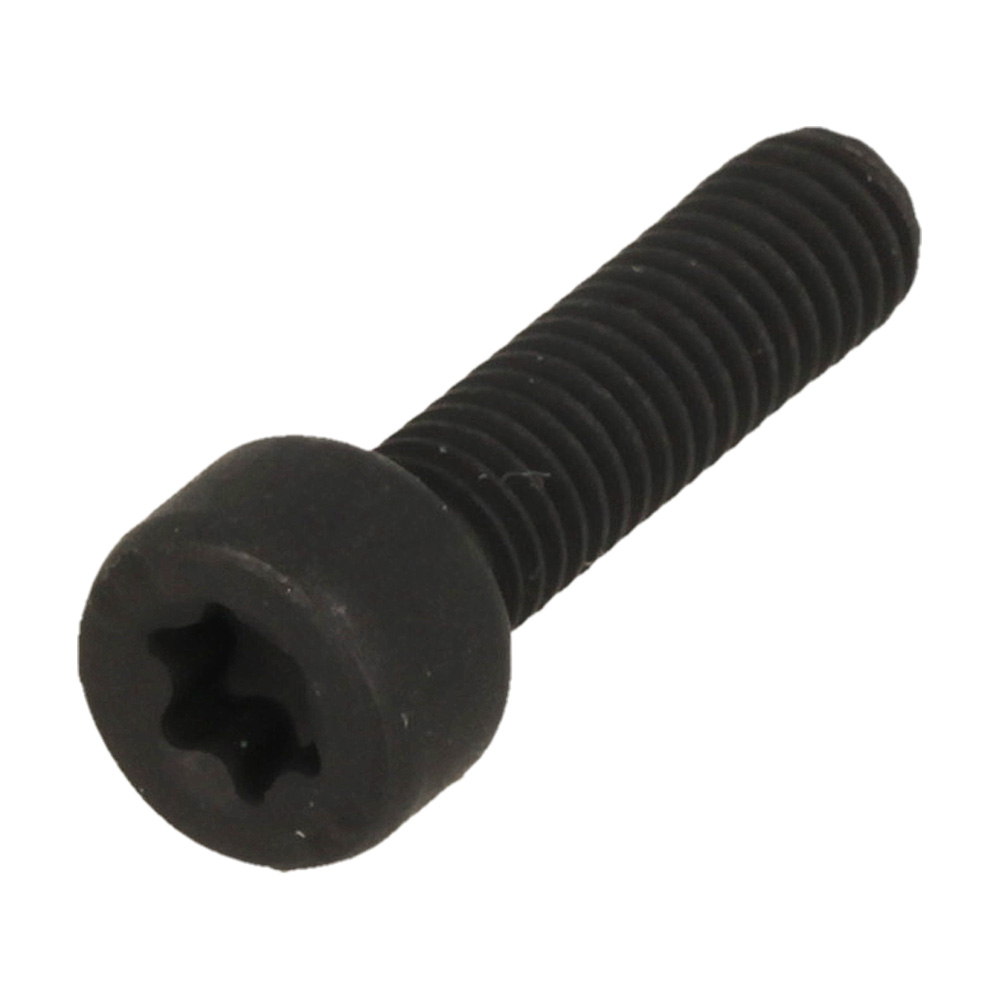

39	MO123878081/0 Available to backorder	Screw	£1.75 £1.46
40	MO118802742/0 Available to backorder	Muffler Euro-2	£54.90 £45.75
42	MO123600078/0 Available to backorder	Guard	£2.70 £2.25
43	9494 In stock	Spark Plug	£3.72 £3.10
44	MO123071023/0 Available to backorder	Cilynder	£45.04 £37.53
45	MO123280080/0 Available to backorder	Intake Manifold Gasket	£1.33 £1.11
47	MO118801419/0 Available to backorder	Intake Manifold	£2.40 £2.00
48	MO112789195/0 Available to backorder	Screw	£1.39 £1.16
49	MO118801420/0 Available to backorder	Spark Plug Cover	£3.24 £2.70
50	MO123600080/0 Available to backorder	Cylinder Cover	£2.81 £2.34
51	MO118801421/0 Available to backorder	Carburetor Gasket	£1.33 £1.11
52	MO118801422/0 Available to backorder	Carburetor	£47.87 £39.89
53	MO118801423/0 Available to backorder	Air Cleaner Base	£9.58 £7.98
54	MO123878114/0 Available to backorder	Screw	£1.40 £1.17
55	MO118801424/0 Available to backorder	Air Filter	£1.55 £1.29
56	MO118801427/0 Available to backorder	Air Cleaner Cover. Grey	£14.35 £11.96
56	MO118801425/0 Available to backorder	Air Cleaner Cover. Yellow	£12.53 £10.44
57	MO118802164/0 Available to backorder	Choke Lever. Black	£2.81 £2.34

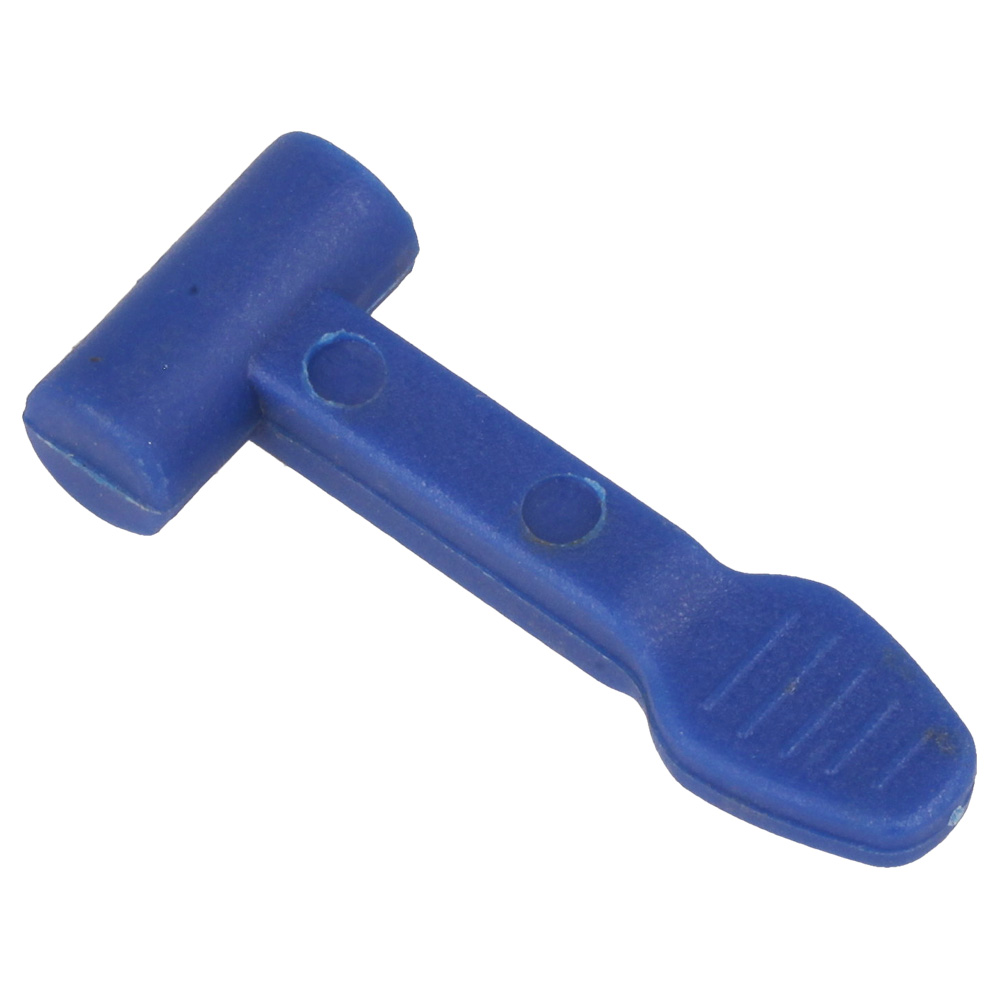

57	MO118802165/0 Available to backorder	Choke Lever. Blue	£3.89 £3.24
58	MO118804984/0 Available to backorder	Engine Short Block	£147.80 £123.17
59	MO118804985/0 Available to backorder	Cylinder - Piston Ass'Y	£60.11 £50.09
