XH 55 - 2010 - 252800003/09 - Castel Garden Hedge Trimmer Engine Diagram

Description

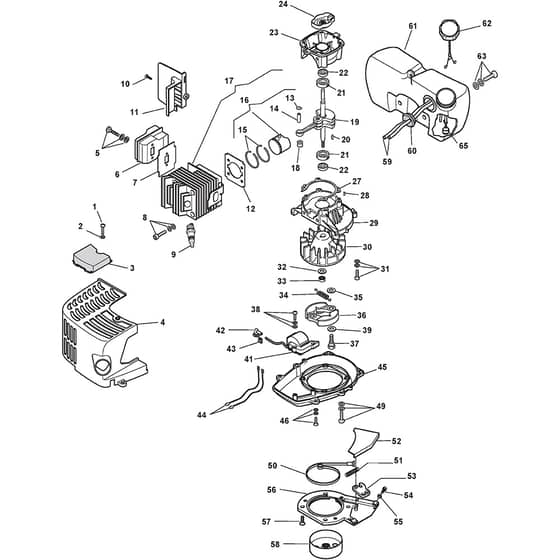

Castel Garden XH 55 Parts Diagram

Product Name - XH 55

Model Year - 2010

Model Type - HT 55

Art.N - 252800003/09

Engine Model -

	Part No.	Details
8	MO112760475/0 Available to backorder	Outfit. Screws	£1.97 £1.64
12	MO6981004 Available to backorder	Cylinder Gasket	£2.82 £2.35
15	MO6981013 Available to backorder	Piston Ring	£6.77 £5.64
21	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
22	MO6981008 Available to backorder	Seal Ring	£2.40 £2.00
24	MO183082002/1 In stock	Starter Cup	£4.37 £3.64
27	MO6981007 Available to backorder	Crankcase Gasket	£2.40 £2.00
34	MO6981034 Available to backorder	Spring	£1.55 £1.29
39	MO118804045/0 Available to backorder	Washer	£1.26 £1.05
41	MO6981204 Available to backorder	Electronic Coil To 31-8-2008	£72.72 £60.60
42	MO6981023 Available to backorder	Cover. Spark Plug	£8.38 £6.98
46	MO6981116 Available to backorder	Outfit. Screws	£1.38 £1.15
49	MO6981118 Available to backorder	Outfit. Screws	£1.33 £1.11
60	MO118801926/0 In stock	Grommet Assy	£5.65 £4.71
65	MO4253292 Available to backorder	Intake Filter	£19.63 £16.36
