XG 175 HD - 2011-2013 - 2T0420373/10 - Castel Garden Ride On Mower Deck Lifting Diagram

Name: XG 175 HD - 2011-2013 - 2T0420373/10 - Castel Garden Ride On Mower Deck Lifting Diagram
SKU: xg_175_hd_2t0420373_10_deck_lifting-group
Price: 0.87 GBP
Availability: InStock

Part No. xg_175_hd_2t0420373_10_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XG 175 HD - 2011-2013 - 2T0420373/10 - Castel Garden Ride On Mower Deck Lifting Diagram

Description

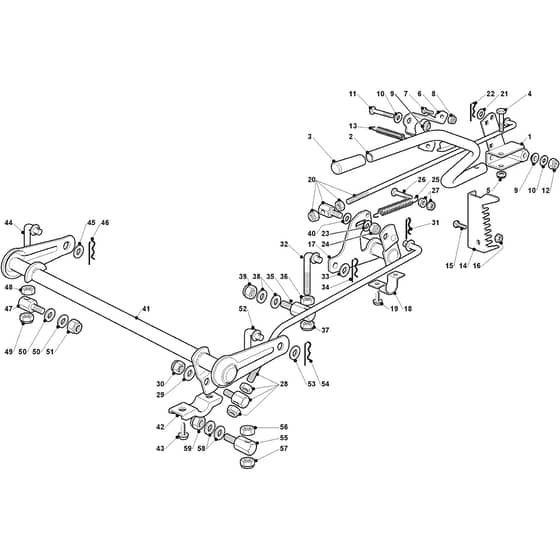

Castel Garden XG 175 HD Parts Diagram

Product Name - XG 175 HD

Model Year - 2011-2013

Model Type - NJX 92 Hydro

Art.N - 2T0420373/10

Engine Model - Honda GCV 530

	Part No.	Details
2	MO382318219/1 Available to backorder	Lever	£45.04 £37.53
3	MO325394535/0 Available to backorder	Knob	£3.92 £3.27
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO112154510/0 In stock	Nut	£1.55 £1.29
6	MO325650113/0 Available to backorder	Plate	£4.93 £4.11
9	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
10	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO125430259/0 Available to backorder	Spring	£4.78 £3.98
14	MO325735511/0 Available to backorder	Sector	£7.02 £5.85
15	MO112818690/0 In stock	Screw	£1.55 £1.29
16	MO112293201/0 In stock	Nut	£1.70 £1.42
17	MO382000387/0 In stock	Rear Lifting Deck Axle Assy	£28.14 £23.45
18	MO325547041/1 Available to backorder	Plate	£5.34 £4.45
19	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
20	MO382000618/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£43.75 £36.46
21	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
23	MO112523040/0 In stock	Washer	£1.55 £1.29
24	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
25	MO122446402/1 Available to backorder	Spring From 01-9-2012	£5.06 £4.22
26	MO112792410/0 Available to backorder	Screw	£1.63 £1.36
27	MO112292102/0 In stock	Nut	£1.70 £1.42
28	MO382000537/0 Available to backorder	Connecting Rod Assy	£32.51 £27.09
31	MO124487997/0 In stock	Cotter Pin To 31-8-2013	£1.55 £1.29
40	MO112521360/0 In stock	Washer	£1.55 £1.29
41	MO382000385/0 Available to backorder	Front Lifting Deck Axle Assy	£52.08 £43.40
42	MO327546015/2 Available to backorder	Plate From 01-9-2013	£1.55 £1.29
43	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
47	MO382640807/1 Available to backorder	Tie Rod Assy Incl. Pos.44-47-48-49	£29.80 £24.83
52	MO125840025/0 In stock	Tie Rod	£9.43 £7.86
54	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
55	MO382640808/0LC Available to backorder	Tie Rod Assy Incl. Pos.52-55-56-57	£20.72 £17.27
56	MO112295200/0 In stock	Nut	£1.39 £1.16
58	MO325670008/1 In stock	Washer	£1.55 £1.29
59	MO112156602/0 In stock	Low Self-Locking Nut M10 Uni7474 Acc.6S	£1.39 £1.16
