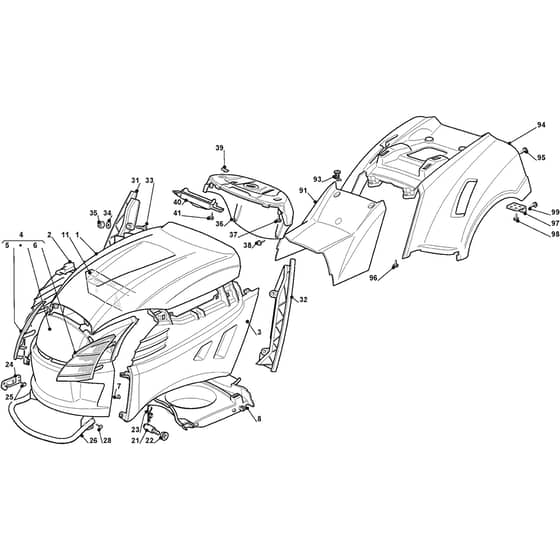

Castel Garden XG 170 HD Parts Diagram

Product Name - XG 170 HD

Model Year - 2010-2013

Model Type - NJX 92 Hydro

Art.N - 2T0430273/10

Engine Model - B&S 4165 AVS

	Part No.	Details
1	MO325076858/0 Available to backorder	Red Upper Bonnet	£108.40 £90.33
2	MO325207120/1 Available to backorder	Hood. Right	£40.75 £33.96
3	MO325207121/1 Available to backorder	Hood. Left	£45.54 £37.95
4	MO382394647/0 Available to backorder	Hood. Front	£88.69 £73.91
5	MO325410874/0 Available to backorder	Right Light Grill	£41.26 £34.38
6	MO325410875/0 Available to backorder	Left Light Plastic Cover	£41.26 £34.38
7	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
8	MO325108025/0 Available to backorder	Conveyor	£39.42 £32.85
21	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
22	MO112293201/0 In stock	Nut	£1.70 £1.42
23	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
24	MO325547109/2 Available to backorder	Plate From 01-9-2010	£4.93 £4.11
25	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
26	MO382869029/1 Available to backorder	Muffler Protection	£89.22 £74.35
28	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
31	MO325599012/0 Available to backorder	Dashboard. Right Profile	£7.02 £5.85
32	MO325599013/0 Available to backorder	Dashboard. Left Profile	£6.90 £5.75
33	MO112815221/0 Available to backorder	Screw	£1.39 £1.16
34	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO325120191/2 Available to backorder	Red Dashboard	£43.22 £36.02
37	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
39	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
40	MO325600074/0 Available to backorder	Card Protection	£9.17 £7.64
91	MO325110363/0 Available to backorder	Cover. Red From 01-9-2006 To 31-8-2009	£44.59 £37.16
93	MO125580020/2 In stock	Stake From 01-9-2010	£8.29 £6.91
94	MO325110341/0 In stock	Red Wheels Cover	£150.19 £125.16
96	MO112735402/0 In stock	Screw	£1.55 £1.29
97	MO325755041/0 Available to backorder	Bracket	£1.70 £1.42
98	MO112728686/0 In stock	Screw	£1.55 £1.29
99	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.63 £1.36
