XG 160 HD - 2008 - 299964576/08 - Castel Garden Ride On Mower Gearbox Controls Diagram

Name: XG 160 HD - 2008 - 299964576/08 - Castel Garden Ride On Mower Gearbox Controls Diagram
SKU: xg_160_hd_299964576_08_gearbox_controls-group
Price: 1.24 GBP
Availability: InStock

Part No. xg_160_hd_299964576_08_gearbox_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XG 160 HD - 2008 - 299964576/08 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

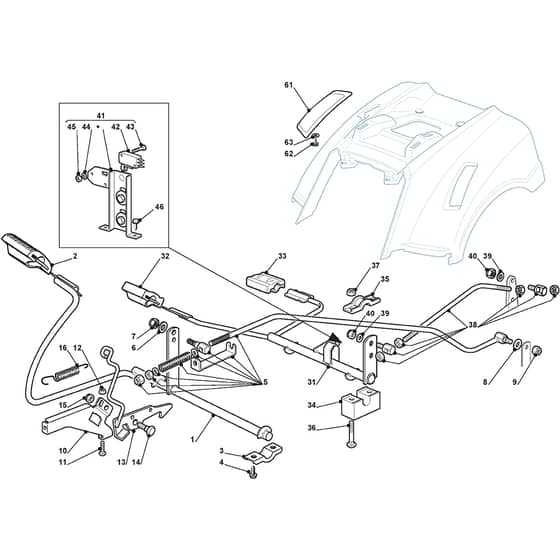

Castel Garden XG 160 HD Parts Diagram

Product Name - XG 160 HD

Model Year - 2008

Model Type - NJX 92 Hydro

Art.N - 299964576/08

Engine Model -

	Part No.	Details
1	MO382500029/1 Available to backorder	Pedal	£67.42 £56.18
2	MO125110267/0 Available to backorder	Clamp Cover To 31-8-2010	£3.79 £3.16
2	MO325110416/0 Available to backorder	Clamp Cover From 01-9-2010	£10.85 £9.04
4	MO112729601/1 Available to backorder	Screw From 01-9-2003	£1.49 £1.24
5	MO382000542/1 Available to backorder	Brake Control Rod Assy From 01-9-2010	£39.42 £32.85
8	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO325785261/0 Available to backorder	Support	£6.64 £5.53
11	MO112815200/0 In stock	Screw	£1.55 £1.29
12	MO112292102/0 In stock	Nut	£1.70 £1.42
13	MO382000531/0 Available to backorder	Parking Brake Lever	£348.43 £290.36
14	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
15	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
31	MO382000605/1 Available to backorder	Feed.Reverse Gear Control Axle Assy From 01-9-2010	£68.56 £57.13
32	MO325110274/0 Available to backorder	Clamp Cover Front To 31-8-2010	£7.19 £5.99
32	MO325110417/0 Available to backorder	Clamp Cover Front From 01-9-2010	£10.85 £9.04
33	MO325110331/0 Available to backorder	Clamp Cover Rear To 31-8-2010	£7.02 £5.85
33	MO325110418/0 Available to backorder	Clamp Cover Rear From 01-9-2010	£10.85 £9.04
34	MO325785185/0 Available to backorder	Support	£3.66 £3.05
35	MO327546015/2 Available to backorder	Plate From 01-9-2013	£1.55 £1.29
36	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
37	MO112154510/0 In stock	Nut	£1.55 £1.29
38	MO382000543/0 Available to backorder	Drive.Reverse Rod Assy	£36.59 £30.49
63	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.57 £1.31
