XG 145 HD - 2009 - 2T2643673/09 - Castel Garden Ride On Mower Engine Diagram

Name: XG 145 HD - 2009 - 2T2643673/09 - Castel Garden Ride On Mower Engine Diagram
SKU: xg_145_hd_2t2643673_09_engine-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XG 145 HD - 2009 - 2T2643673/09 - Castel Garden Ride On Mower Engine Diagram

Description

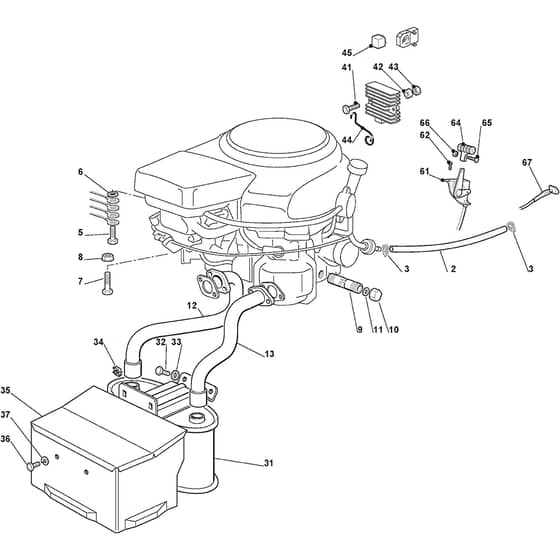

Castel Garden XG 145 HD Parts Diagram

Product Name - XG 145 HD

Model Year - 2009

Model Type - NJX 92 Hydro

Art.N - 2T2643673/09

Engine Model - Honda GXV 530

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
3	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
5	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
9	MO125598052/0 Available to backorder	Oil Discharge Extension To 31-8-2010	£19.36 £16.13
10	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
11	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
12	MO118738221/0 Available to backorder	Right Exhaust Connection Tube	£92.90 £77.42
13	MO118738222/0 Available to backorder	Left Exhaust Connection Tube	£91.51 £76.26
31	MO182750003/0 Available to backorder	Muffler Assy	£251.32 £209.43
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
34	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
35	MO382598005/2 Available to backorder	Muffler Protection	£40.82 £34.02
36	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
37	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
41	MO112815221/0 Available to backorder	Screw	£1.40 £1.17
42	MO122170950/0 Available to backorder	Spacer	£1.33 £1.11
43	MO112292102/0 In stock	Nut	£1.69 £1.41
44	MO127430561/0 Available to backorder	Spring	£2.40 £2.00
45	MO133567000/0 Available to backorder	Relay	£13.58 £11.32
61	MO182000200/1 Available to backorder	Throttle Cable	£24.49 £20.41
62	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
64	MO325592000/1 Available to backorder	Knob From 01-9-2013	£2.40 £2.00
65	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
66	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
67	MO125090001/2 In stock	Choke Control Cable	£19.36 £16.13
