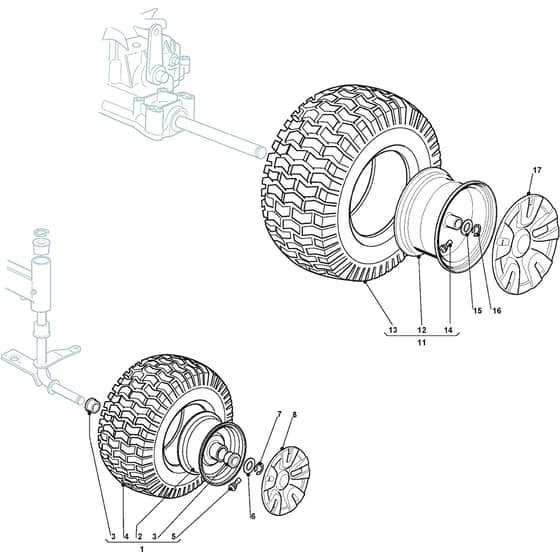

XG 145 HD - 2007 - 299964476/07 - Castel Garden Ride On Mower Wheel Diagram

Description

Castel Garden XG 145 HD Parts Diagram

Product Name - XG 145 HD

Model Year - 2007

Model Type - NJX 92 Hydro

Art.N - 299964476/07

Engine Model - Honda GXV 530

	Part No.	Details
1	MO382680007/1 Available to backorder	Front Wheel	£128.10 £106.75
2	MO182000590/1 Available to backorder	Front Wheel Rimm	£68.99 £57.49
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
4	MO125590047/0 Available to backorder	Rear Tyre (Deli)	£44.93 £37.44
7	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
12	MO182000592/0 Available to backorder	Rear Wheel Rimm	£109.79 £91.49
14	MO125950000/0 In stock	Valve	£5.34 £4.45
15	MO125670005/2 In stock	Washer	£4.08 £3.40
16	MO112001010/0 In stock	Circlip	£1.84 £1.53
17	MO382110275/0 Available to backorder	Rear Wheel Disccover Assy Tx	£16.61 £13.84
