XG 140 - 2010 - 2T0320273/10 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

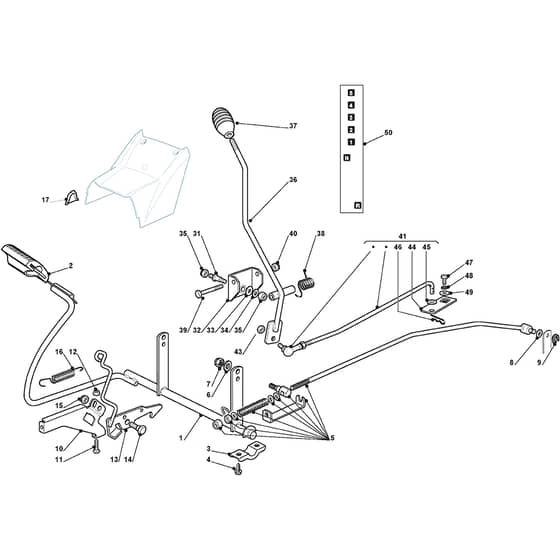

Castel Garden XG 140 Parts Diagram

Product Name - XG 140

Model Year - 2010

Model Type - NJX 92

Art.N - 2T0320273/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125110269/0 Available to backorder	Clamp Cover	£3.67 £3.06
3	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
4	MO112729601/1 Available to backorder	Screw From 01-9-2003	£1.48 £1.23
5	MO382000541/1 Available to backorder	Brake Control Rod Assy	£43.21 £36.01
6	MO112523040/0 In stock	Washer	£1.49 £1.24
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
9	MO112436050/0 In stock	Plate	£1.82 £1.52
10	MO325785261/0 Available to backorder	Support	£6.62 £5.52
11	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
12	MO112292102/0 In stock	Nut	£1.69 £1.41
13	MO382000531/0 Available to backorder	Parking Brake Lever	£348.44 £290.37
14	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
16	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
17	MO325207172/0 Available to backorder	Plate	£4.22 £3.52
31	MO125510035/0 In stock	Pin	£3.67 £3.06
32	MO382774247/0 Available to backorder	Clamp	£8.52 £7.10
33	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
34	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
35	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
36	MO382318215/0 Available to backorder	Gearshift	£32.21 £26.84
37	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
38	MO125430258/0 Available to backorder	Spring	£7.96 £6.63
39	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
41	MO382000545/0 Available to backorder	Gear Connection Rod Assy	£26.60 £22.17
43	MO112155000/0 In stock	Nut	£1.55 £1.29
44	MO325318169/0 Available to backorder	Lever	£2.81 £2.34
45	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
46	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
49	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
