XG 140 - 2007 - 299954376/07 - Castel Garden Ride On Mower Grasscatcher Diagram

Description

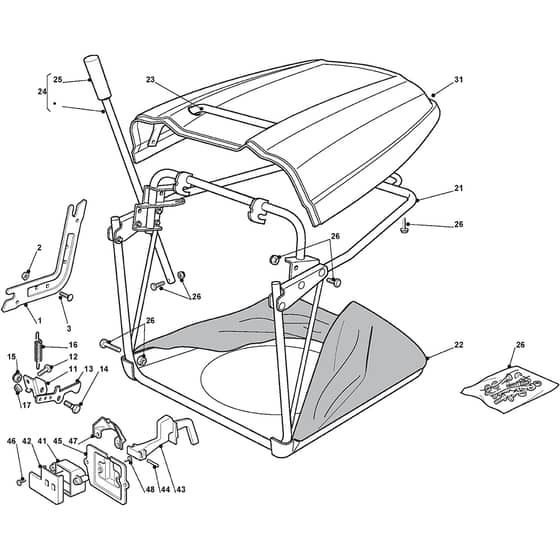

Castel Garden XG 140 Parts Diagram

Product Name - XG 140

Model Year - 2007

Model Type - NJX 92

Art.N - 299954376/07

Engine Model -

	Part No.	Details
1	MO325785275/0 Available to backorder	Support	£11.95 £9.96
2	MO112818690/0 In stock	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.70 £1.42
11	MO325755031/2 Available to backorder	Bracket From 01-9-2010	£5.06 £4.22
12	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
13	MO325774315/1 Available to backorder	Bracket From 01-9-2010	£3.92 £3.27
14	MO125510080/2 Available to backorder	Pin To 31-8-2010	£1.39 £1.16
15	MO112292102/0 In stock	Nut	£1.70 £1.42
16	MO122450432/0 Available to backorder	Spring	£1.97 £1.64
17	MO112154330/0 In stock	Nut	£1.55 £1.29
21	MO382800111/0 Available to backorder	Front Frame	£216.05 £180.04
22	MO182105973/0 Available to backorder	Grasscatcher	£137.26 £114.38
23	MO382394003/0 Available to backorder	Front Handle	£21.12 £17.60
24	MO382869023/0 Available to backorder	Rod	£33.79 £28.16
25	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
48	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
